Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH1.27-nT 20T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 1.27mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PA6T+30%Glass Fiber, UL94V-0 |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 1A | Operation Temperature: | -40℃ To +105℃ |
| Insulation Resistance: | 1000 MΩ Min | Contact Resistance: | 30mΩ Max |
| Processing Temperature: | 260℃ For 10 Seconds | ||
| High Light: | UL94V-0 Board To Board Connector,PA6T Board To Board Connector,1.27mm Pitch SMT Box Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

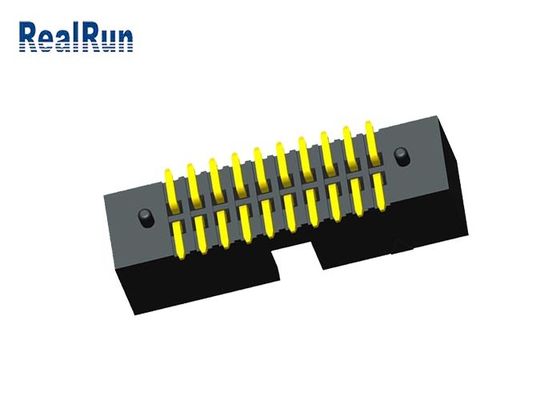

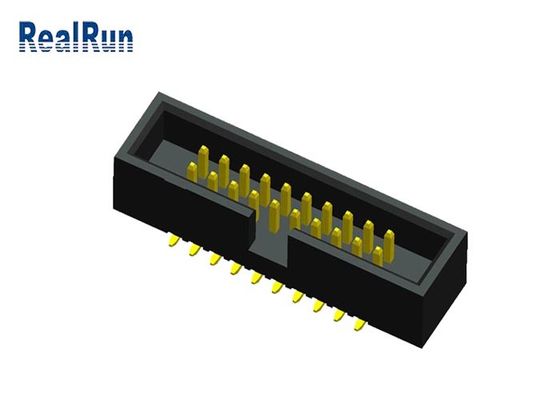

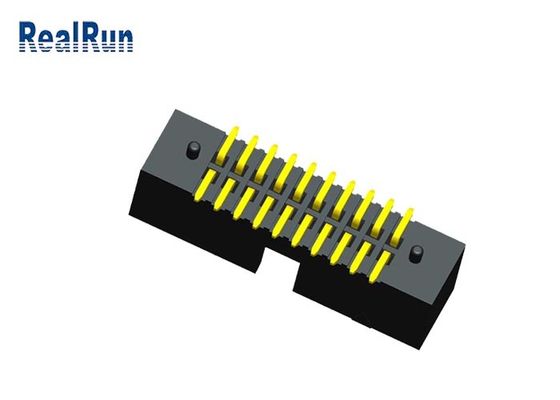

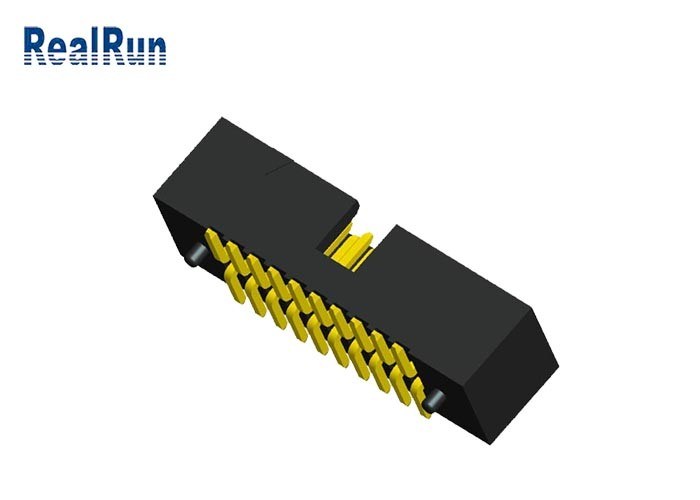

Wire/Board To Board Connector With Post 1.27mm SMT SMD Box Header
Product features: high temperature resistant to high voltage electrical conductivity.
Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating.
Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal.
|
Name |
Box Header Connector |
|
Pitch |
1.27mm |
|
Type |
SMT type |
|
Insulator Color |
Black |
|
Insulator |
PA6T+30%G.F UL 94V-0 |
|
Current Rating |
1A |
|
Contact Resistance(max) |
30m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
|
Contact |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T PBT |
|
Processing Temperature |
260℃ for 10 seconds |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
Box Header Connector
Box header is usually composed of square plastic socket and several square pins arranged in order. The difference between the ejector header connector and the box header connector is that the snap on both sides of the box header is removed.
According to the requirements, there are four common specifications of the external dimensions of the connector: 1.0 pitch, 1.27 pitch, 2.0 pitch and 2.54 pitch; According to the different pitch, the diameter of the square pin is changed accordingly. The contact surface between the bottom and PCB board can be designed as SMT type or 90 degree bending insertion and DIP direct insertion of 180 degrees.
FAQ
Q: Are you manufacturer of trading company?
A: We are a manufacturer in Shenzhen, China.
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q: What is your terms of payment?
A: Small Order amount, 100% better by PayPal or T/T in advance. Large amount like more than 5000USD, 30% T/T in advance, balance before shipment.
Q: Can you help me design a plug, receptacle, connector or harness?
