SGS LCP PA6T PBT SMT Box Header 1.27mm Wire To Board Connector

Product Description:

Connector manufacturers, professional in producing connector for more than 15 years

We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

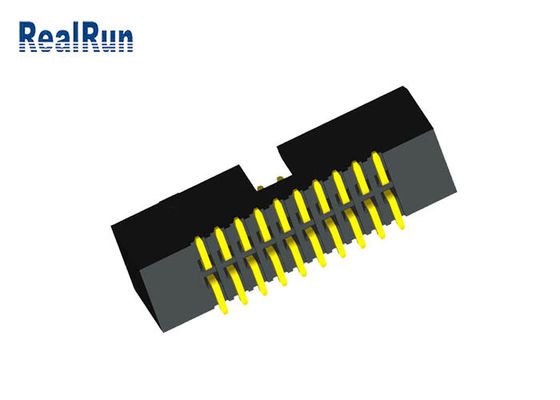

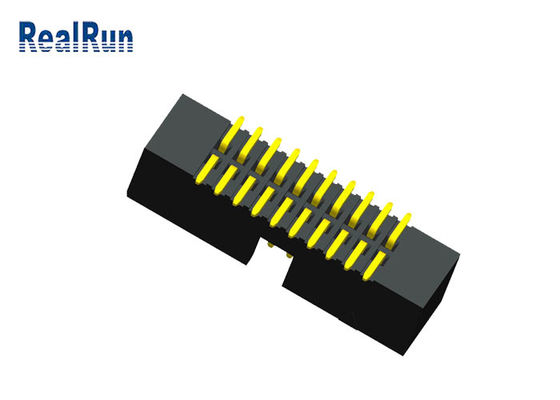

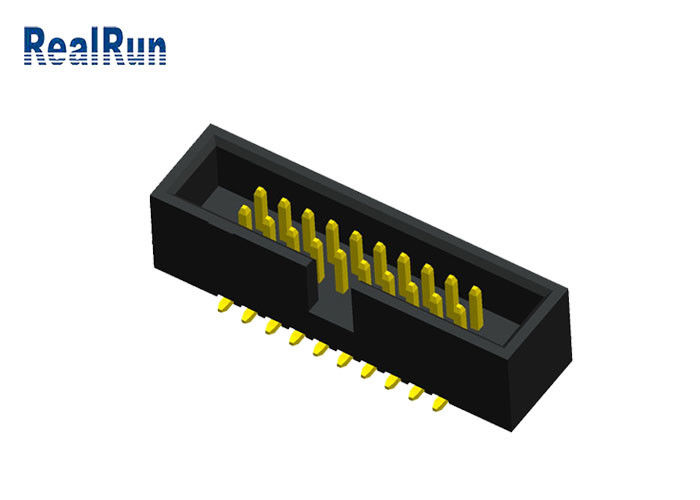

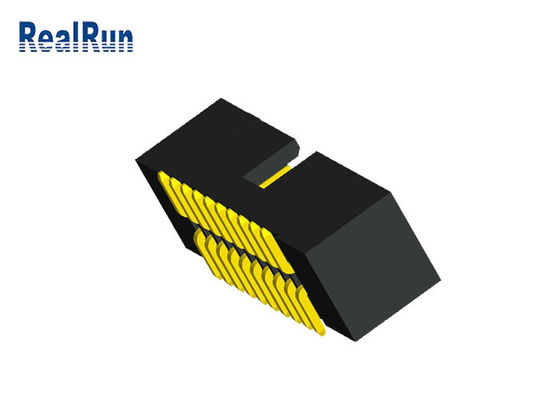

PA6T 1.27mm SMT Box Header Weld Type Wire/Board To Board Connector

Product features: high temperature resistant to high voltage electrical conductivity.

Product material: Brass contact material,PA9T/LCP/PBT plastic, plating surface treatment: gold-plated or tin plating.

Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal.

Function: after the box connector is welded on the PCB board, it connects the corresponding specifications of IDC cable or female pin header, and then forms the circuit connection mode required by the designer with other circuits. It is usually used to transmit control signal and weak current.

Please feel free to contact us and we will send you the drawings you need.

Box Header Connector

Box header is usually composed of square plastic socket and several square pins arranged in order. The difference between the ejector header connector and the box header connector is that the snap on both sides of the box header is removed.

According to the requirements, there are four common specifications of the external dimensions of the connector: 1.0 pitch, 1.27 pitch, 2.0 pitch and 2.54 pitch; According to the different pitch, the diameter of the square pin is changed accordingly. The contact surface between the bottom and PCB board can be designed as SMT type or 90 degree bending insertion and DIP direct insertion of 180 degrees.

RealRun Profile

ShenZhen RealRun Electronic Co.,Ltd. is a connector manufacturer integrating with product R＆D, design, production and marketing with the main business covering pin header, female header, box header, header connector ,IDC, IDC flat cable,FFC/FPC, FFC flexible flat cable and bar connector. S9nce its establishment in May of 2005,the Company persists in a business philosophy of "quality first,service supplemented, credit or ientated" to keep pace with the times. In 2013, the company had passed ISO9001 quality certification, and established a product testing lab, All of the products satisfy the requirements as per ROHS and REACH.

"Three-C" of the Company is deeply trusted by customers and employees;

Clean: cleaning, tidy, self-cleaning;

Coordination: coordinate with customers, leaders and employees;

Connection: connection with the world,colleagues and products;

The Company enjoys excellent equipment and precise testing. At present, our products are well sold to each quarter of China,and some of our products are sold to foreign countries. We have set up business office in ChengDu and BeiJing. Taking "satisfying you" as mission, the Company is making great efforts to develop international market. We sincerely hope all the coustomers to make discussion on cooperation with us for win-win.

Why choose RealRun for supplier?

A: 1. RealRun has more than 15 years experiences in the electronic connectors area.

2.The goods with good quality and service are sold to more than 70 countries.

3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.

4.One of the biggest electronic connectors supplier in the China mainland.
