Pitch 2.0mm Dual Row SMT Box Header PA6T Black Plastic

Product Description:

Connector manufacturers, professional in producing connector for more than 15 years

We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

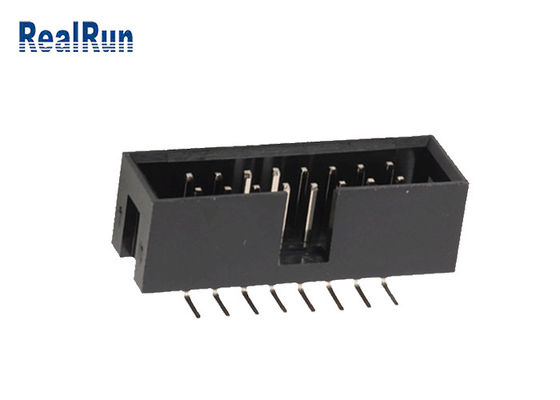

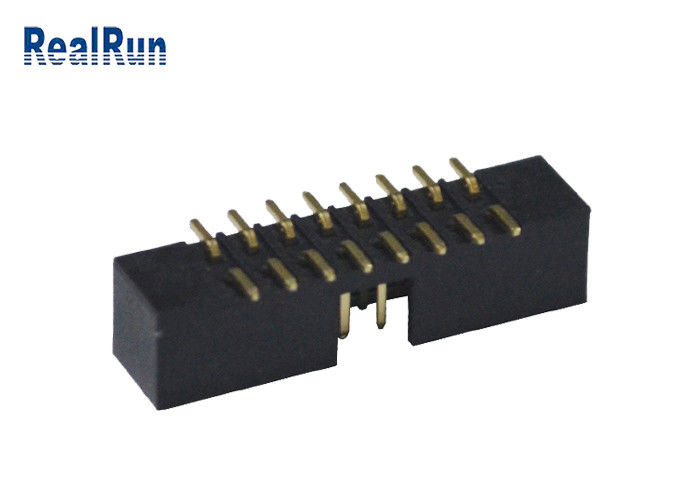

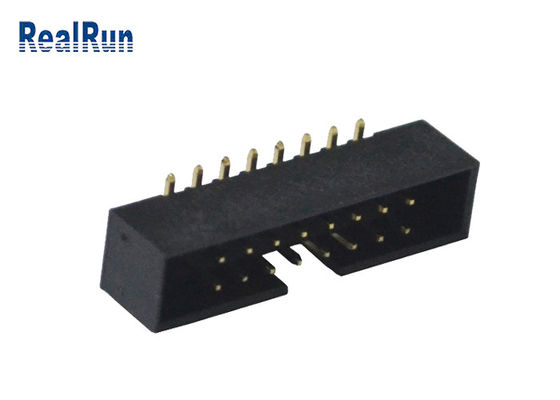

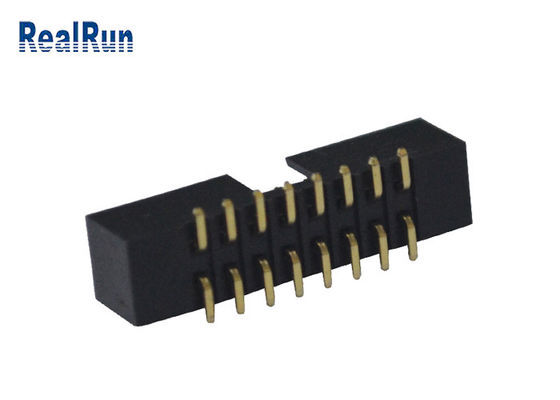

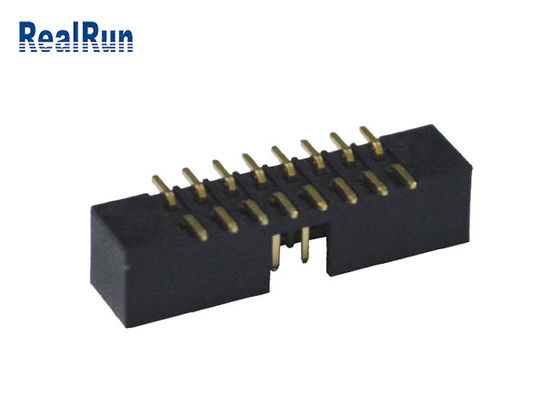

PA6T Black Plastic H=5.6mm Pitch 2.0 Dual Row SMT Type Box Header

Product features: high temperature resistant to high voltage electrical conductivity.

Product material: Good quality brass contact material,PA9T/LCP/PBT environmental protection and high temperature resistance plastic, plating surface treatment: gold-plated or tin plating.

Scope of application: Box header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.

Function: after the box connector is welded on the PCB board, it connects the corresponding specifications of IDC cable or female pin header, and then forms the circuit connection mode required by the designer with other circuits. It is usually used to transmit control signal and weak current.

Please feel free to contact us and we will send you the drawings you need.

Box Header Connector

Box header is usually composed of square plastic socket and several square pins arranged in order. The difference between the ejector header connector and the box header connector is that the snap on both sides of the box header is removed.

According to the requirements, there are four common specifications of the external dimensions of the connector: 1.0 pitch, 1.27 pitch, 2.0 pitch and 2.54 pitch; According to the different pitch, the diameter of the square pin is changed accordingly. The contact surface between the bottom and PCB board can be designed as SMT type or 90 degree bending insertion and DIP direct insertion of 180 degrees.

Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.

Our advantages

1. 15 years experience in the electronic connector.

2. Strong R＆Team. specialized in connector and modle design.

3. Quality Certification. Certified ROHS and REACH,SGS,ISO9001.

4. Strict Shipping. 100% tested before delivery.

5. Fast Delivery. Orders shipped in 3-10 days.

6. OEM/ODM. OEM/ODM service offered.
