| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH2.54-nP 10Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PA6T+30%Glass Fiber, (UL94V-0) |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 3A | Operation Temperature: | -40℃ To +105℃ |
| Insulation Resistance: | 1000 MΩ Min | Contact Resistance: | 30mΩ Max At DC 2A |
| Processing Temperature: | 260℃ For 10 Seconds | ||
| High Light: | PA6T IDC Male Header Connector,Male Header Connector 2.54mm Pitch,SMT 10 Pin Box Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

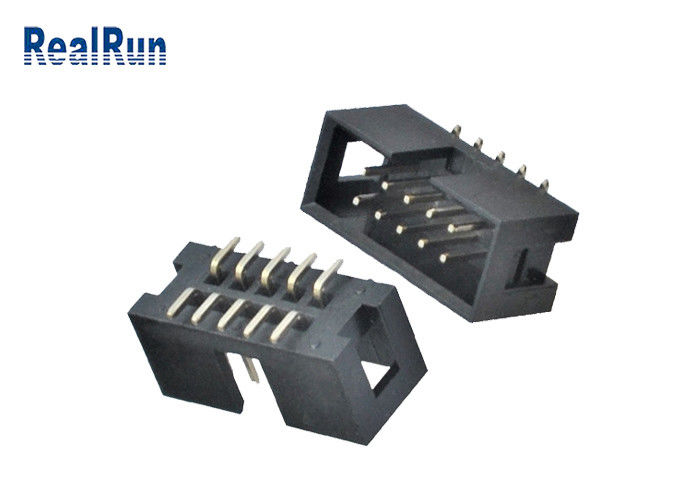

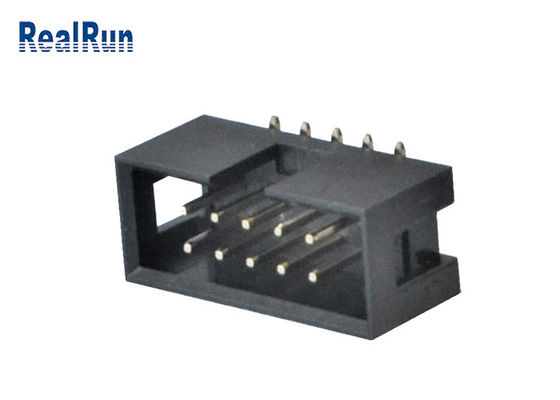

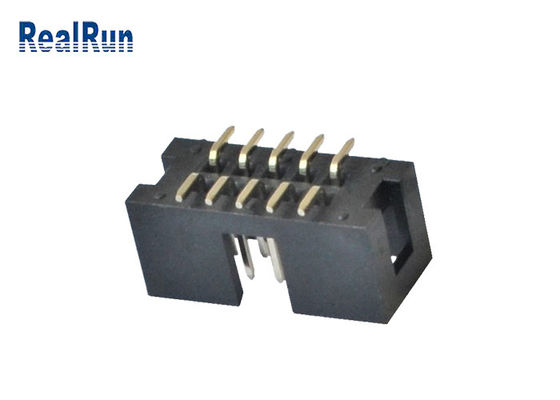

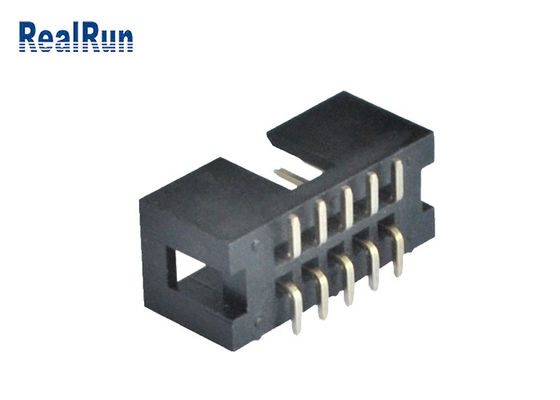

PA6T H=9.0 IDC Male Header Connector 2.54mm Pitch SMT Type 10 Pin Box Header
Product features: high temperature resistant to high voltage electrical conductivity.
Product material: PA9T/LCP/PBT environmental protection and high temperature resistance plastic, brass contact material,plating surface treatment: gold-plated or tin plating.
Scope of application: Box header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable wire to board provides and board to board connect.
|
Name |
Box Header Connector |
|
Pitch |
2.54mm |
|
Type |
SMT type |
|
Insulator Color |
Black |
|
Insulator |
PA6T+30%Glass/LCP Fiber (UL94V-0) |
|
Current Rating |
3A |
|
Contact Resistance(max) |
30m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
|
Contact |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Tin or gold over nickel |
| Processing Temperature | 260℃ for 10 seconds |
|
Insulator material |
PA6T PBT |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
Box Header Connector
Box header is usually composed of square plastic socket and several square pins arranged in order. The difference between the ejector header connector and the box header connector is that the snap on both sides of the box header is removed.
According to the requirements, there are four common specifications of the external dimensions of the connector: 1.0 pitch, 1.27 pitch, 2.0 pitch and 2.54 pitch; According to the different pitch, the diameter of the square pin is changed accordingly. The contact surface between the bottom and PCB board can be designed as SMT type or 90 degree bending insertion and DIP direct insertion of 180 degrees.
Packaging and shipping
MOQ: 1000pcs
Trade terms: FPB Shenzhen; Ex-work
Payment term: TT, L/C, Western Union.
30% deposite in advance, 70% balance before shipping.
Delivery time: 3~7 workingdays after receiving deposite.
1. Tape reel package
2. Cover Tape: Transparent
Shipping: By sea, By air, By Express such as DHL,TNT, UPS, Fedex etc.
