| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH2.54-nW 40W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | UL94V-0 |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 3A | Operation Temperature: | -40℃ To +105℃ |
| Insulation Resistance: | 1000 MΩ Min | Contact Resistance: | 30mΩ Max At DC 3A |
| High Light: | Pitch 2.54mm Box Header Connector,Box Header Connector UL94V-0,PA9T Board To Wire Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

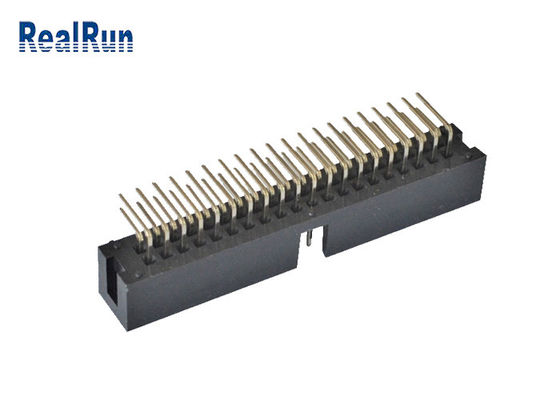

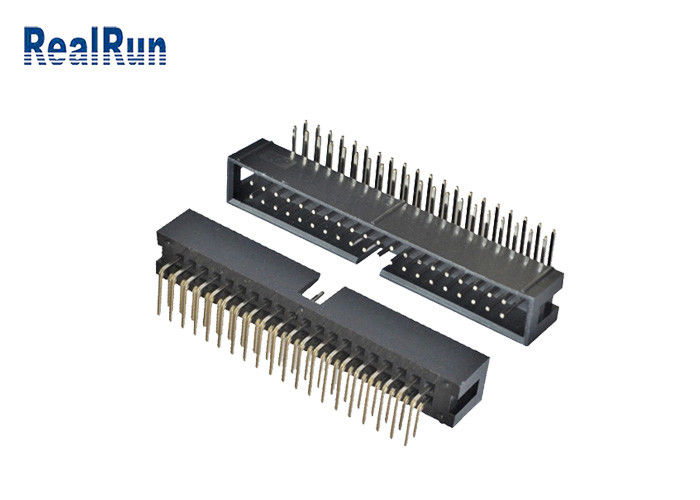

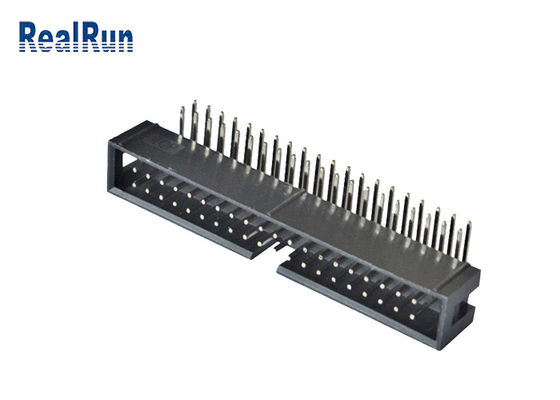

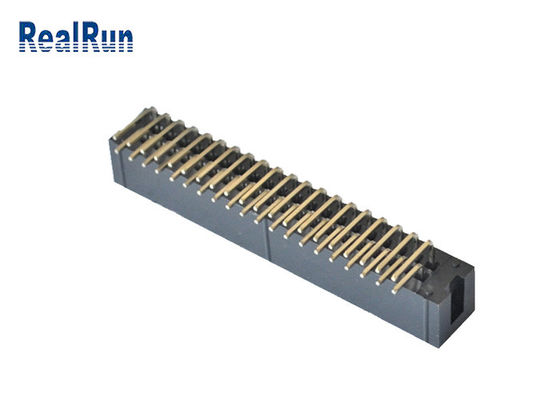

Board To Wire Connector Brass Gold Tin 90° Box Header Black Double Row UL94V-0
Product features: Environmental-friendly plastic is used, containing glass fiber, which has high high temperature resistance and hardness, and four principles of copper, stable performance and long service life.
Product material: PA9T/LCP/PBT environmental protection and high temperature resistance plastic, good quality brass contact material,plating surface treatment: gold-plated or tin plating.
Scope of application: Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the female header socket supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to cable connection.
|
Name |
Box Header Connector |
|
Pitch |
2.54mm |
|
Type |
SMT type |
|
Insulator Color |
Black |
|
Insulator |
UL94V-0 |
|
Current Rating |
3A |
|
Contact Resistance(max) |
30m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
|
Contact |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T PBT |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
FAQ
Q: When will the inquiry be answered?
A: it's usually within 12 hours.
Q: Didn't find the product you wanted?
A: never mind. You can find similar products, send us the details of the drawings or pictures, we can accept customize for you.
Q: Are you a trader or a factory?
A:we are factory, 15 years of electronic connector manufacturing experience and history.
Q: Do you accept small orders?
A: Yes, please contact us to make a small order for you.
