| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.0*2.0-2*nP 12Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 2.0mm |
| Plastic Height: | 2.0mm | Insulator Material: | PBT/PA6T+30%Glass Fiber UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 2A | Contact Resistance(max): | 20mΩ Max At DC 1A |
| Insulation Resistance(min): | 1000MΩ Min At DC500V | Operating Temperature: | -40℃ To +105℃ |
| Processing Temperature: | 230℃ For 10 Seconds | (NYLON-6T): | 250±5℃ For 10 Seconds |
| High Light: | PBT PA6T Pin Header Connector,H2.0 Brass Pin Header Connector,SGS Dual Row Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

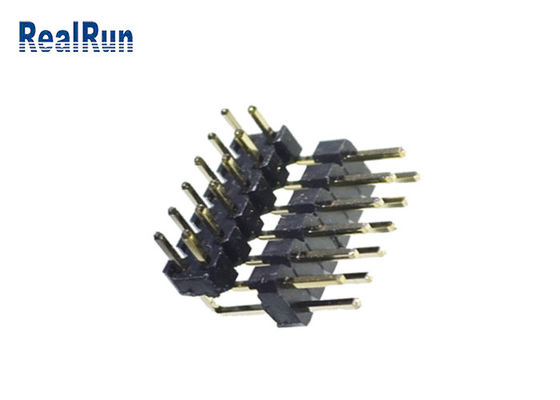

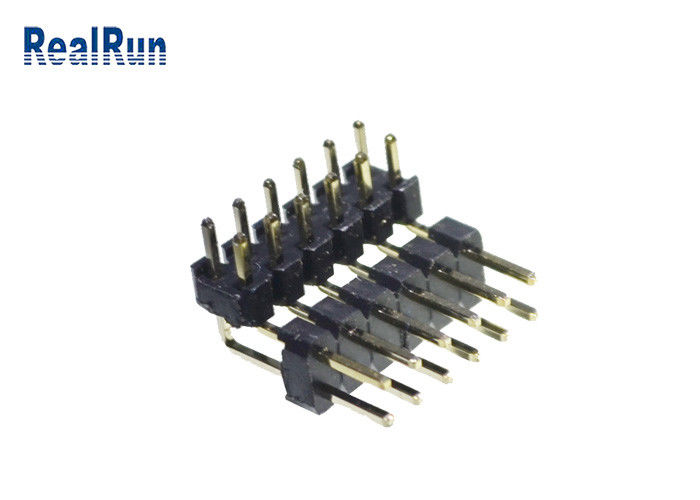

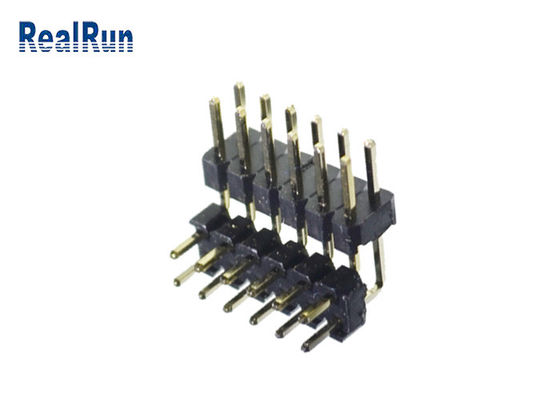

H 2.0 Right Angle Pin Header Connector 2.0 Pitch Double Row 2*6 Pin
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2.It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire,suface nickel plated, tin or gold plated over nickel
3. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection Board to Board, cable to board provides.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.0mm |
| Plastic Height | 2.0mm |
| Type | Right Angle Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PBT/PA6T+30%G.F UL94V-0 |
| Current Rating | 2A |
| Contact Resistance(max) | 20m ohm Max at DC 1A |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Brass |
| Contact Plating | Tin or gold over nickel |
| Insulator material | PA6T+30%Glass Fiber |
| Operation Temperature | -40~105℃ |
|
Processing Temperature (NYLON-6T) |
230±5℃ for 10 seconds 250±5℃ for 10 seconds |
| Packing | Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 1Pin~40Pin(Customized) |
Please feel free to contact us and we will send the drawing of you need
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
