| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-2*nT 20PBW |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 2.54mm |
| Plastic Height: | 2.5mm | Insulator Material: | PA6T+30%Glass Fiber UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 3.0A | Contact Resistance(max): | 30mΩ Max |
| Insulation Resistance(min): | 1000MΩ Min | Operating Temperature: | -40℃ To +105℃ |
| Processing Temperature: | 260℃ For 10 Seconds | ||
| High Light: | PA6T 20P SMD Pin Header,Double Row SMD Pin Header,PA6T Horizontal SMT Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

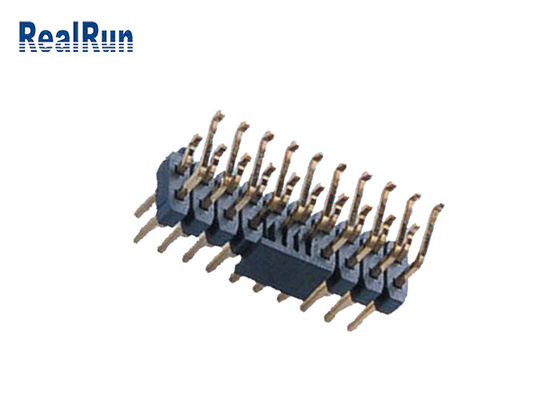

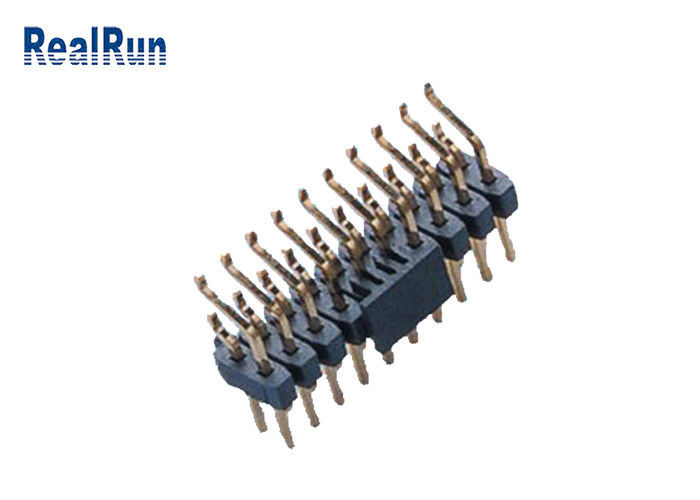

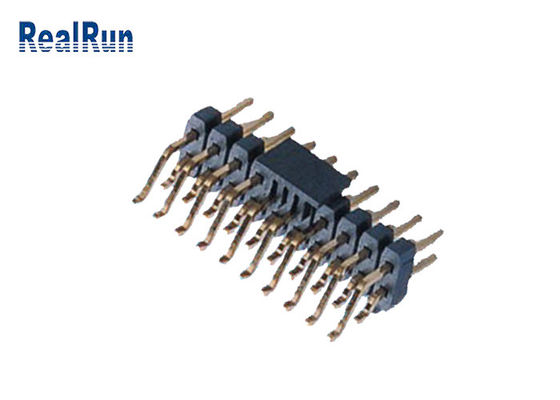

PA6T Double Row 20 Pin SMD Pin Header Horizontal Type Connector With Cap/Post 30mΩ Max
Product features:Envornment protection rubber and plastic, containing 30% glass fiber, fireproof and high temperature resistant, with strong oxidation resistance and stability.
Product function:Complete the board-to-board-to-cable connection like a bridge, so as to achieve the function of current connection signal transmission.
Scope of application: Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the female header socket supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to cable connection.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.54mm |
| Plastic Height | 2.5mm |
| Type | Horizontal SMT |
| Insulator Color | Black/Grey |
| Insulator Flammability | PA6T+30%G.F UL 94V-0 |
| Current Rating | 3.0A |
| Contact Resistance(max) | 30m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or gold over nickel |
| Operation Temperature | -40~105℃ |
|
Processing Temperature |
260℃ for 10 seconds |
| Packing | Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |
Please feel free to contact us and we will send the drawing of you need
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
