Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*H-2*nT 16T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Contact Material: | Brass |
|---|---|---|---|
| Insulator Material: | PA6T+30%Glass Fiber, UL94V-0 | Termination: | Welding |
| Contact Plating: | Gold Flash Plated | Current Rating: | 3amp |
| Operation Temperature: | -40℃ To +105℃ | Insulation Resistance: | 1000 MΩ/Min At DC500V |
| Contact Resistance: | 20mΩ Max At DC 2A | Withstanding Voltage: | 1000V AC/Minute |
| High Light: | LCM LED SMT Pin Header,UL94V-0 SMT Pin Header,Board To Board Connector PA6T |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

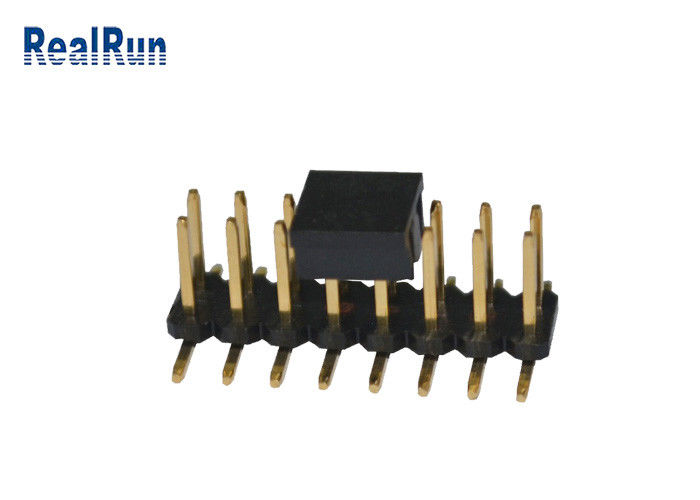

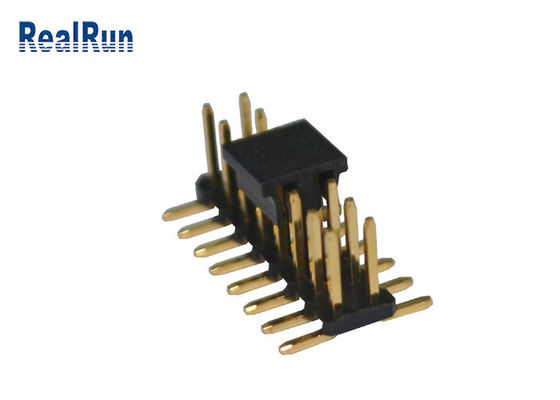

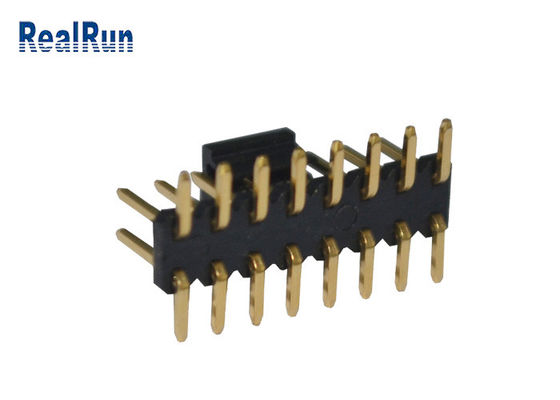

2.54mm SMT Pin Header 16 Pin Gold Connector Brass 2*8P Board To Board Connection
Product features:environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is like a bridge, connecting the blocking current on both sides, realizing data transmission and signal interworking.
Application scope: Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Vertical SMT type |
|
Insulator Color |
Black |
|
Insulator |
PA6T+30%G.F UL 94V-0 |
|
Current Rating |
3.0A |
|
Contact Resistance(max) |
20m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
|
Contact |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
| Withstanding Voltage | 500V AC/minute |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
