| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-2*nW 10W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Contact Material: | Brass |
|---|---|---|---|
| Insulator Material: | High Temperature Thermoplastic UL94V-0 Standard:PBT+30%G.F | Termination: | Welding |
| Contact Plating: | Gold Flash Plated | Current Rating: | 3Amp |
| Operation Temperature: | -40℃ To +105℃ | Insulation Resistance: | 1000 MΩ/Min At DC500V |
| Contact Resistance: | 20mΩ Max At DC 3.0A | Withstanding Voltage: | 1000V AC/Minute |
| High Light: | PBT LCP Brass Pin Header,PA6T Brass Pin Header,DC500V Two Row Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

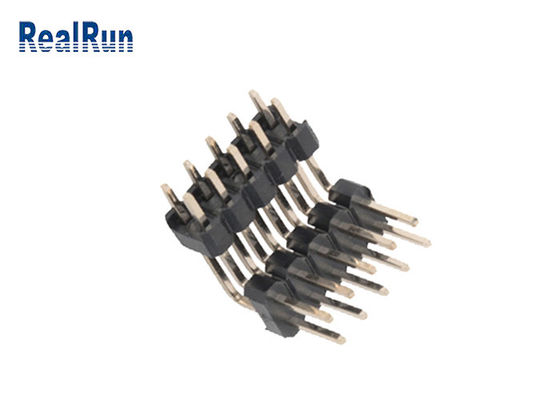

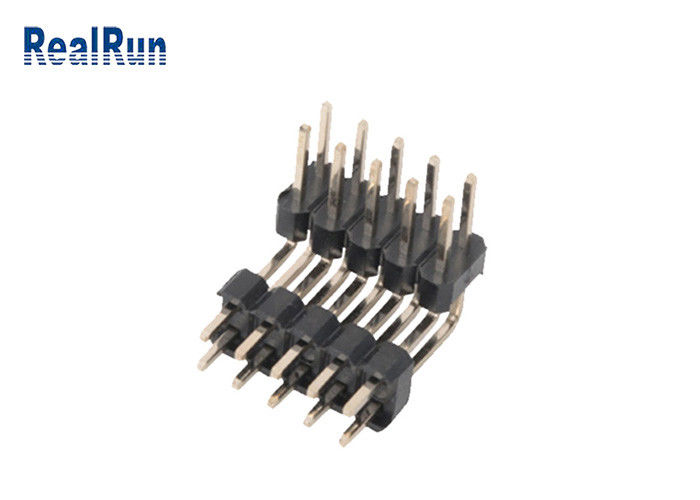

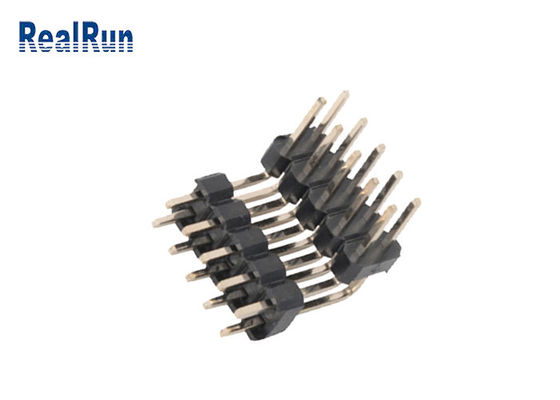

Gold Flash 10P Two Row 90 Degree Male 2.54mm Pitch Brass Black Pin Header
Product features:It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to cable connection; it can also be used independently for board to board connection.
Product function:It is like a bridge, connecting the blocking current on both sides, realizing data transmission and signal interworking.
Application scope: Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the female header socket supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to cable connection.
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Right Angle type |
|
Insulator Color |
Black |
|
Insulator |
High Temperature Thermoplastic UL94V-0 Standard:PBT+30%G.F |
|
Current Rating |
3Amp |
|
Contact Resistance(max) |
20m ohm Max at DC 3Amp |
| Operation Temperature | -40℃ to +105℃ |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold Flash Plated |
| Withstanding Voltage | 1000V AC/minute |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
Our advantages
1. 15 years experience in the electronic connector.
2. Strong R＆Team. specialized in connector and modle design.
3. Quality Certification. Certified ROHS and REACH,SGS,ISO9001.
4. Strict Shipping. 100% tested before delivery.
5. Fast Delivery. Orders shipped in 3-10 days.
6. OEM/ODM. OEM/ODM service offered.
