| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-2*nW 6W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | High Temperature Thermoplastic UL94V-0 Standard:PBT+30%G.F |
| Termination: | Welding | Contact Plating: | Gold Flash Plated |
| Current Rating: | 3Amp | Operation Temperature: | -40℃ To +105℃ |
| Insulation Resistance: | 1000 MΩ/Min At DC500V | Withstanding Voltage: | 1000V AC/Minute |
| High Light: | PA6T PBT Pcb Header Connector,LCP PA6T Pcb Header Connector,UL94V-0 Dual Row Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

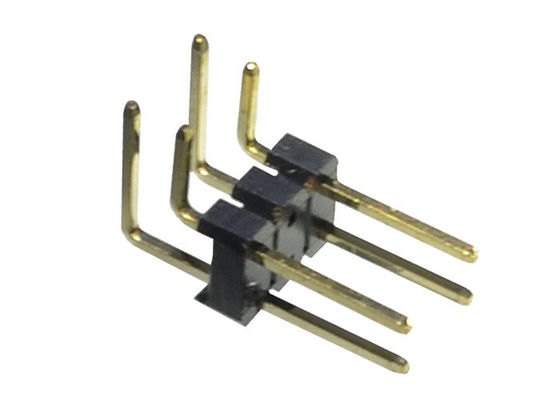

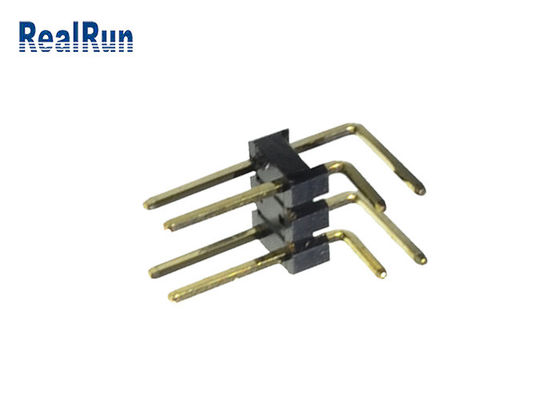

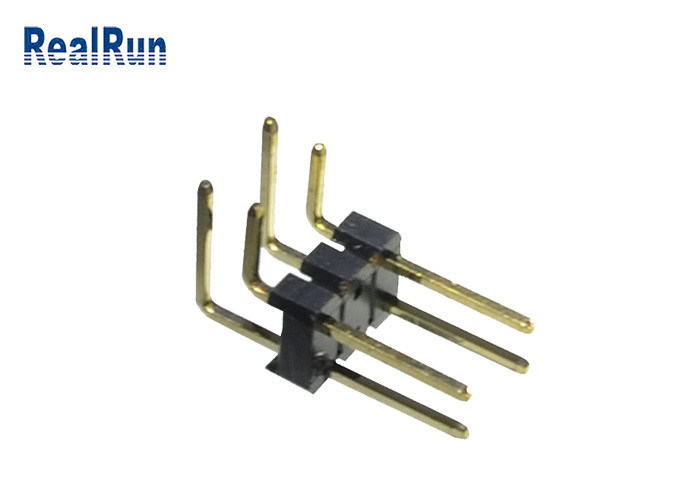

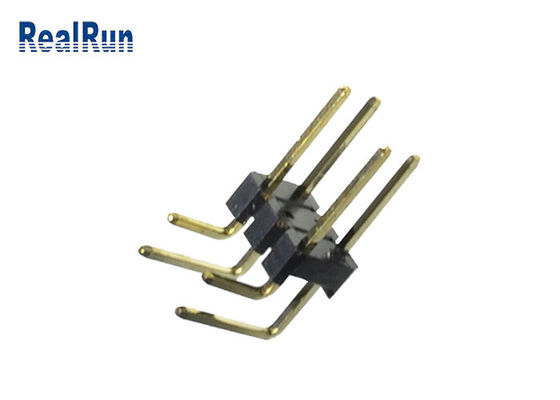

Gold Flash Male 90° 2.54 Mm Pitch Pcb Connector Dual Row Pin Header
Product features:Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function:It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Right Angle type |
|
Insulator Color |
Black |
|
Insulator |
High Temperature Thermoplastic UL94V-0 Standard:PBT+30%G.F |
|
Current Rating |
3Amp |
|
Contact Resistance(max) |
20m ohm Max at DC 3Amp |
| Operation Temperature | -40℃ to +105℃ |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold Flash Plated |
| Withstanding Voltage | 1000V AC/minute |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
why choose RealRun for supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
