| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-2*nP 40 Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | High Temperature Thermoplastic UL94V-0 Standard:PBT+30%G.F |
| Termination: | Welding | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 3Amp | Insulation Resistance: | 1000 MΩ/Min At DC500V |
| Contact Resistance: | 20mΩ Max At DC 3Amp | Withstanding Voltage: | 1000V AC/Minute |
| High Light: | PA6T PBT Pin Header Connector,LCP Straight Pin Header Connector,UL94V-0 Double Row Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

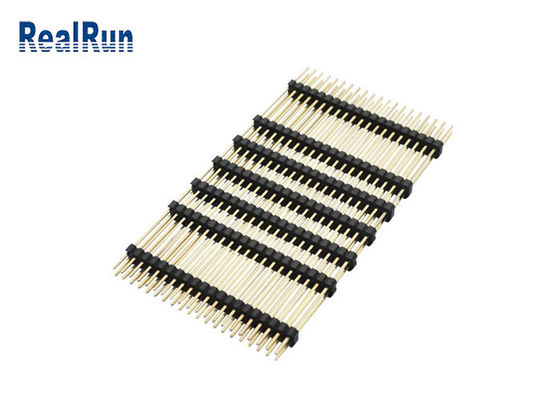

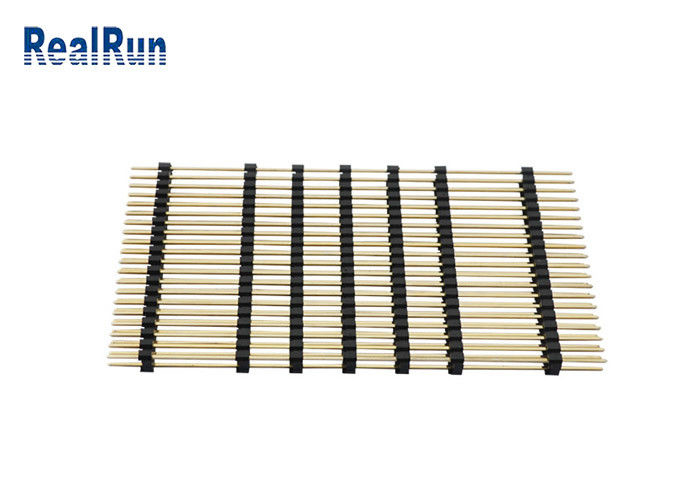

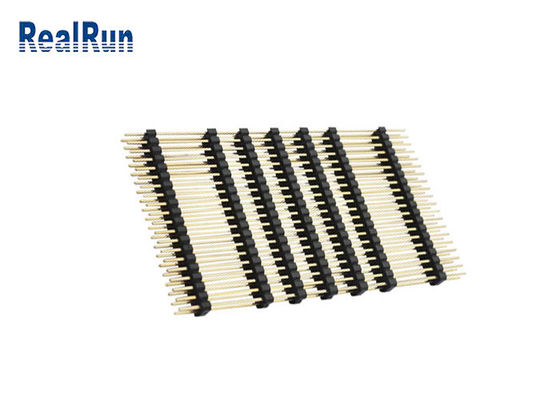

Long Pin Straight 2.54mm Pin Header Seven Plastic Double Row
Product features: By using environmental protection high temperature resistant fireproof rubber and plastic, strong oxidation resistance and stability, long service life.
Product function: it is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. High strength, high hardness, strong chemical corrosion resistance.
Application scope: widely used all kinds of products in Electronic industry, such as remote control, computer, TV, digital camera, MP3, mobile phone, U disk, electronic watch motherboard, home appliances, etc. all kinds of board-to-board, board-to-cable connection.
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Straight/DIP type |
|
Insulator Color |
Black |
|
Insulator |
High Temperature Thermoplastic UL94V-0 Standard:PBT+30%G.F |
|
Current Rating |
3Amp |
|
Contact Resistance(max) |
20m ohm Max at DC 3Amp |
| Operation Temperature | -40℃ to +105℃ |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold Flash Plated |
| Withstanding Voltage | 1000V AC/minute |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Bag Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
How to order?
1. please tell us what type and quantity you need；
2. we will make a PL for you to confirm the order details ;
3. when we confirmed everything, can arrange the payment;
4. finally we deliver the goods within the stipulated time;
FAQ
Q: How long will it take to receive the goods?
A: It depends on the quantity of your order, usually 3-7 workdays if the goods are in stock.
Q: Do you check the products before shipment?
A: Yes, before shipment, we will check the products in multiple layers to ensure that there are no quality problems, and then package them out of the warehouse.
Q: If there is a product quality problem, what should you do?
A: This kind of situation will not happen basically. In case it happens, we will negotiate with you about the solution and reach an agreement.We will bear the return and exchange costs incurred by the product quality.
Q: Where is your factory, can i visit it?
A: Yes, welcome. our company(Weizan Electronics) is in Juhui Industrial Park, Yutang street, Tianliao village, Guangming New District, Shenzhen, China.
