| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-2*nP 40 Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PA6T+30%Glass Fiber, (UL94V-0) |
| Termination: | Welding | Contact Plating: | Au 3U" |
| Current Rating: | 3A | Operation Temperature: | -40℃ To +105℃ |
| Contact Resistance: | 30mΩ Max At DC 3A | Processing Tempearture: | 260±5℃ For 10 Seconds |
| High Light: | PA6T 40P Dual Row Pin Header,PBT LCP Dual Row Pin Header,Au 3U" Double Row Pin Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

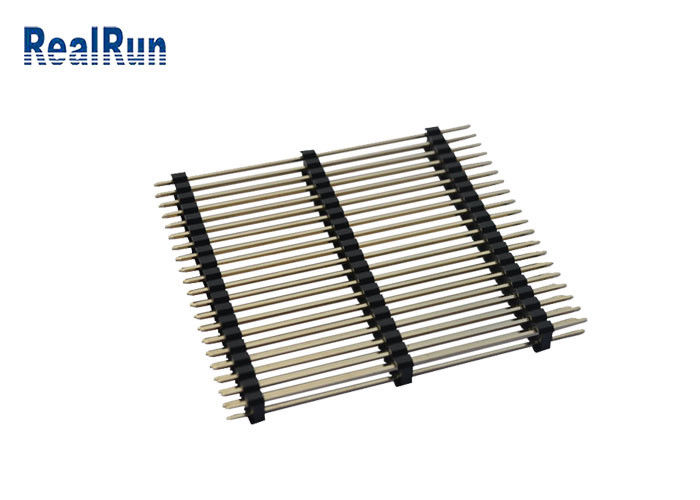

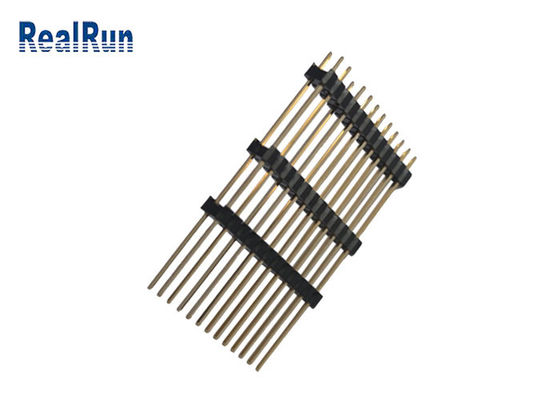

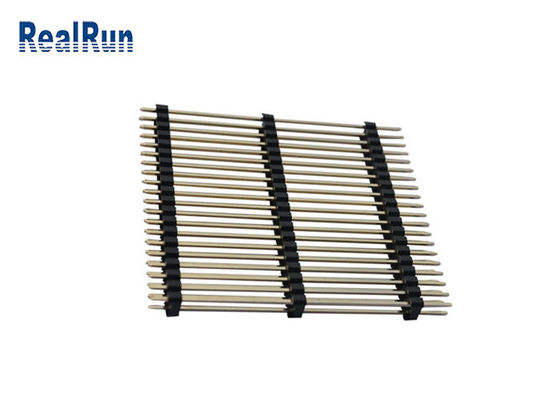

Au 3U" Machined 40P Header 2.54mm Dual Row Pin Header Straight Type Three Plastic
Product features: By using environmental protection high temperature resistant fireproof rubber and plastic, strong oxidation resistance and stability, long service life.
Product function: it is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. High strength, high hardness, strong chemical corrosion resistance.
Application scope: widely used all kinds of products in Electronic industry, such as remote control, computer, TV, digital camera, MP3, mobile phone, U disk, electronic watch motherboard, home appliances, etc. all kinds of board-to-board, board-to-cable connection.
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Straight/DIP type |
|
Insulator Color |
Black |
|
Insulator |
PA6T+30%Glass Fiber, (UL94V-0) |
|
Current Rating |
3Amp |
|
Contact Resistance(max) |
30m ohm Max at DC3A |
| Operation Temperature | -40℃ to +105℃ |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Au 3U" |
| Processing Temperature | 260±5℃ for 10 seconds |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Bag Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
Description
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
3. Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity, etc.
The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
Q: If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q: Which payment can be accepted:
1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
