| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-1*nW 5 W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PBT+30%Glass Fiber, (UL94V-0) |
| Termination: | Welding | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 3A | Operation Temperature: | -40℃ To +105℃ |
| Insulation Resistance: | 1000MΩ Min | Contact Resistance: | 30mΩ Max At DC 3A |
| High Light: | PA6T PBT SMT Pin Header,PBT LCP SMT Pin Header,UL94V-0 Single Row PCB Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

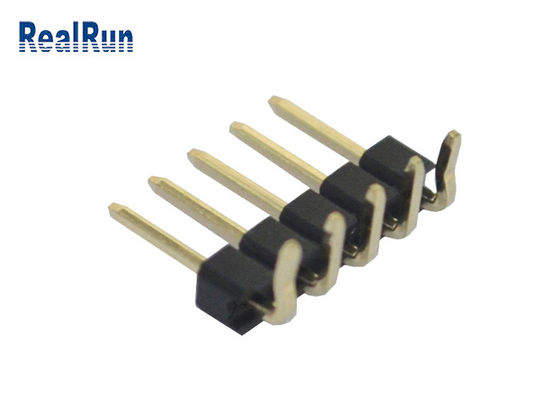

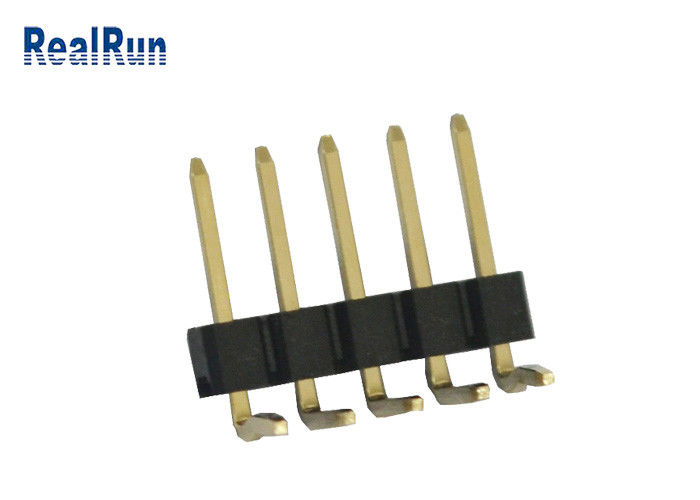

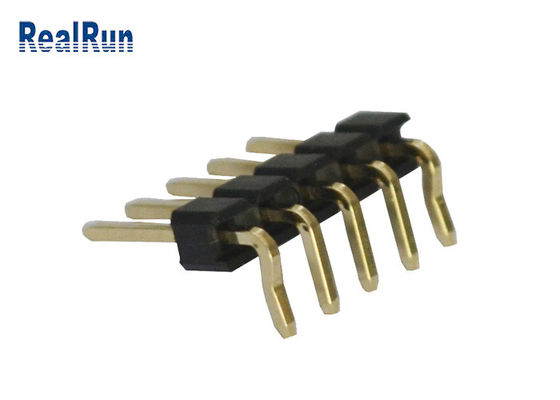

PCB Connector 2.54mm Right Angle Single Row 5P SMT Pin Header
Product features:Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function:It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Right Angle SMT type |
|
Insulator Color |
Black |
|
Insulator |
PBT+30%Glass Fiber, (UL94V-0) |
|
Current Rating |
3A |
|
Contact Resistance(max) |
30m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Bag Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
FAQ
Q: Are you manufacture o trading company?
A: We are a manufacture in Shenzhen, China.
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
How to Packing?
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
