Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FFC1.0-nW 18W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong,China | Brand Name: | RealRun |
|---|---|---|---|
| Gender: | Female | Operating Voltage: | 60VAC/DC |
| Pitch: | 1.0mm | Current Rating: | 3A |
| Application: | PCB | Color: | Black |
| Contact Plating: | Gold/Tin Plating | ||
| High Light: | Tin Plating FFC FPC Connector,PA6T Female FFC FPC Connector,DC 500V FFC Cable Connector |
||

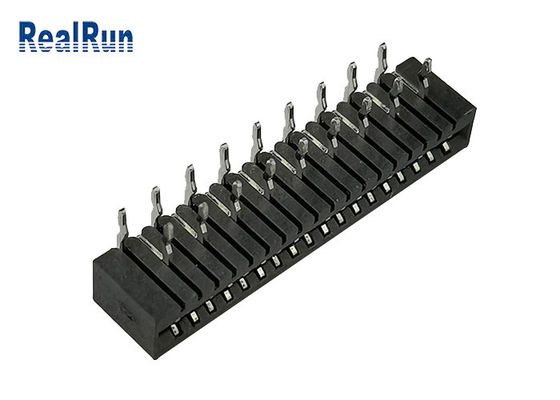

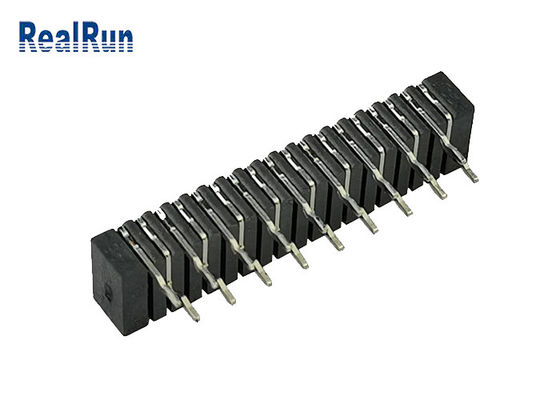

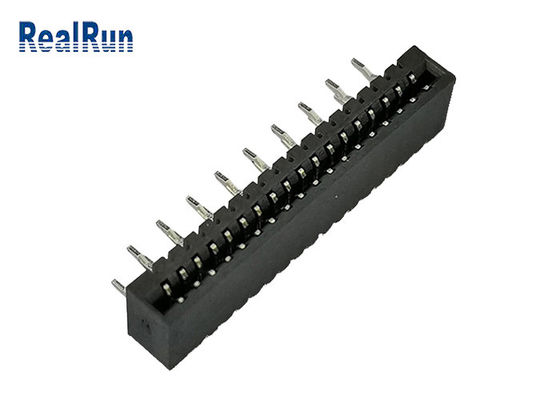

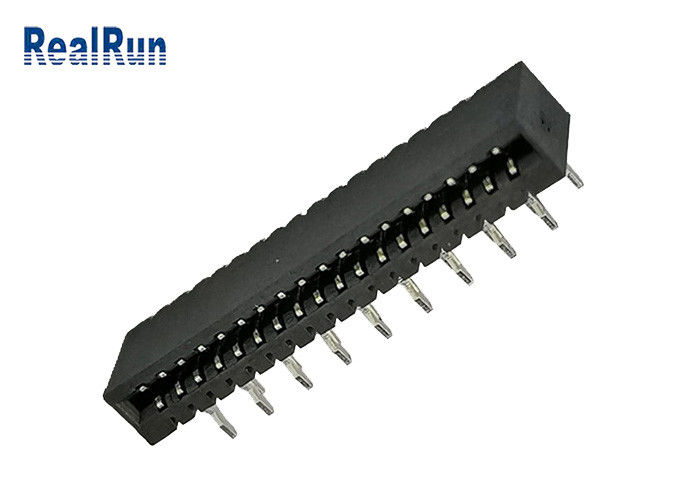

1.0 Mm FFC/FPC Connector 90° Bend Black FFC Flat Cable Socket Header 2*9P
|
Name |
FFC/FPC Connector |
|
Pitch |
1.0mm |
|
Type |
Right Angle type |
|
Insulator Color |
Black |
|
Insulator Flammability |
UL 94V-0 |
|
Current Rating |
3A |
|
Contact Resistance(max) |
4m ohm Max |
|
Operating Voltage |
60V AC/DC |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact materials |
Gold/Tin plating |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T/LCP |
|
Processing Temperature |
-40~105℃ |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Description
1. Fpc connectors should be very careful not to scratch or bend the end pins of their interfaces when installing or using them. No will affect the normal use of the connector.
2. Fpc connectors can not be used to unplug connectors, or they will cause data loss. Moreover, the connector connection can not operate the connector connection under the condition of wet hands, so as not to cause the connector to short-circuit failure if there is water gas invading the connector's interface. Can not be used, and hands wet to pick up the plug connector, It is also an accident that can easily cause a safety shock.
Product Application
FFC/FPC connector is widely used in the connection between various printer printheads and mainboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines and various DVD players.
FPC connector is mainly used in various fields such as digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automobile electronics, etc., such as mobile phones, digital cameras, notebook computers, mid, MP3 4 5, handheld game machines, audio systems, etc.
OEM/ODM Capability
Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.
OEM services encompass buyers logo or label, designs services plus a whole after sales support package.
Payment Terms
There are many payment methods available such as D/A, D/P, T/T and Paypal.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
