Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH2.0-nP 14Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 2.0mm |
| Plastic Height: | 6.4mm | Insulator Material: | PBT+30%Glass Fiber, UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold Or Tin Over Nickel |
| Current Rating: | 2A | Contact Resistance(max): | 20mΩ Max At DC 2A |
| Insulation Resistance(min): | 1000MΩ Min | Operating Temperature: | -40℃ To +105℃ |
| High Light: | 30% GF Double Row Box Header,Double Row Box Header UL94V-0,14P IDC SMT PCB Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

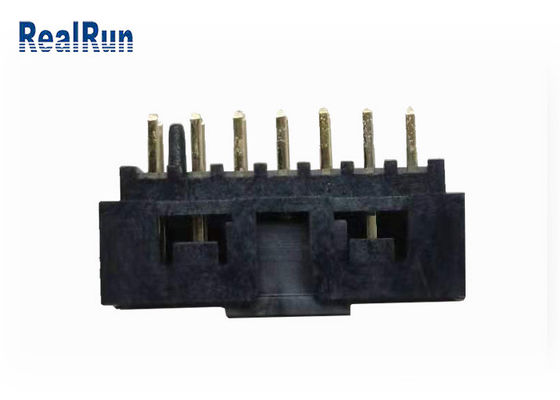

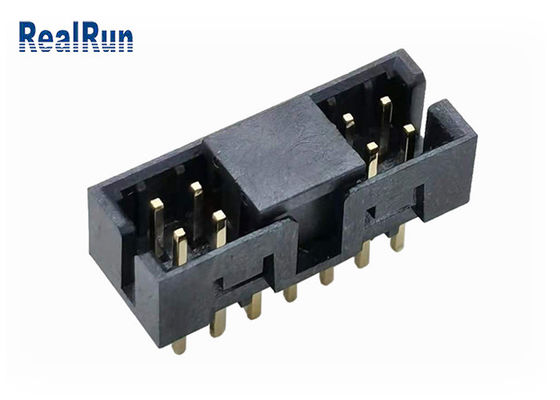

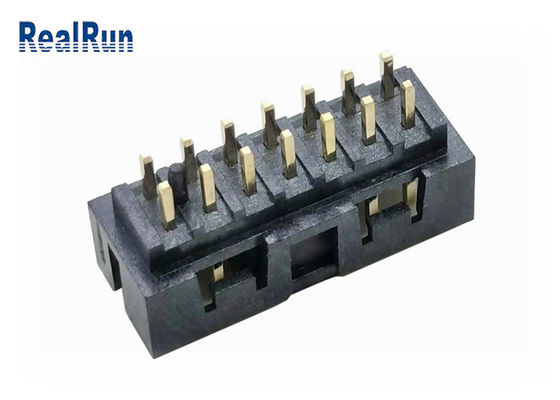

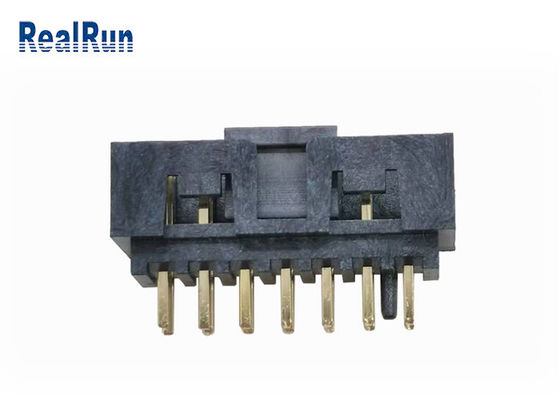

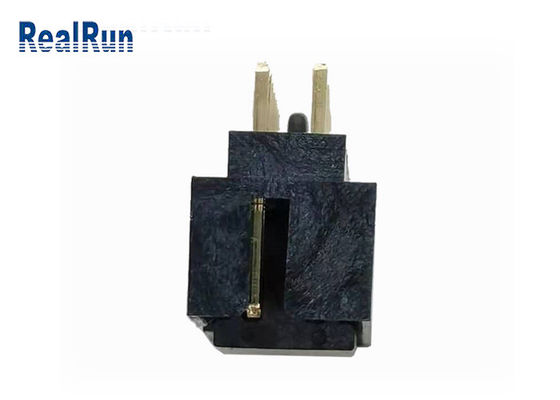

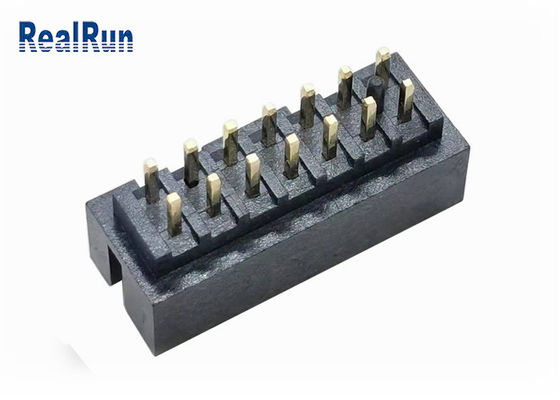

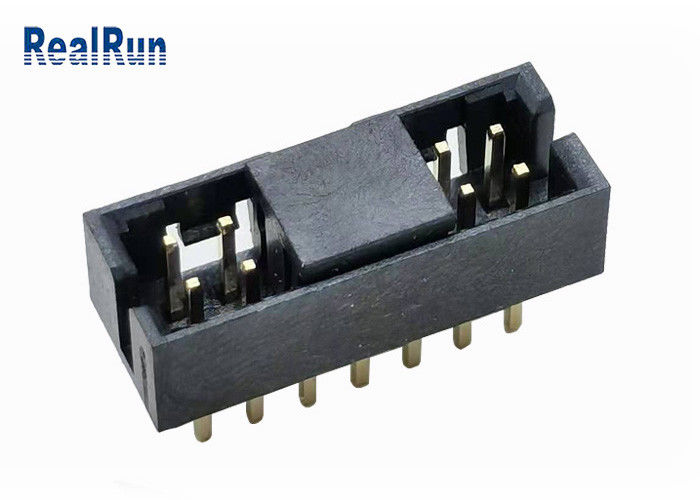

PBT+30%GF H6.4 2.0Mm Pitch Computer Box Header 14P IDC Socket Brass Gold Flash RoHS
| Name | Box Header Connector/PCB Connector |
| Pitch | 2.0mm |
| Plastic Height | 6.4mm |
| Type | Straight Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PBT+30%Glass Fiber, UL94V-0 |
| Current Rating | 2.0A |
| Contact Resistance(max) | 20m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or Gold over nickel |
| Insulator material | PA6T/PBT/LCP |
| Operation Temperature | -40~105℃ |
| Packing | Bag/Tray Packing/Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |
Please feel free to contact us and we will send you the drawings you need.
Packaging and shipping
MOQ: 1000pcs
Trade terms: FPB Shenzhen; Ex-work
Payment term: TT, L/C, Western Union.
30% deposite in advance, 70% balance before shipping.
Delivery time: 3~7 workingdays after receiving deposite.

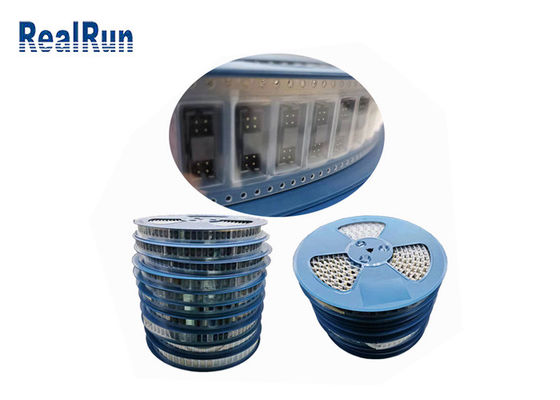

1. Tape reel package
2. Cover Tape: Transparent
Shipping: By sea, By air, By Express such as DHL,TNT, UPS, Fedex etc.
