Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*7.1-2*nT 10T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |

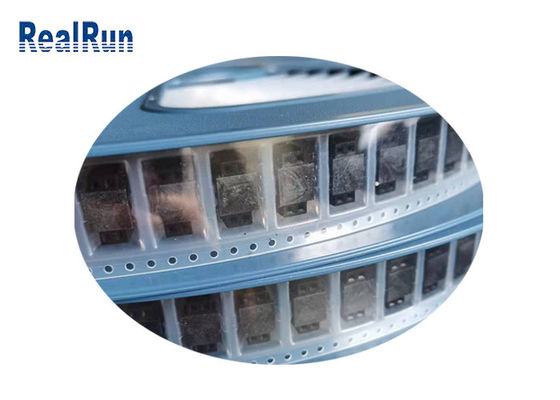

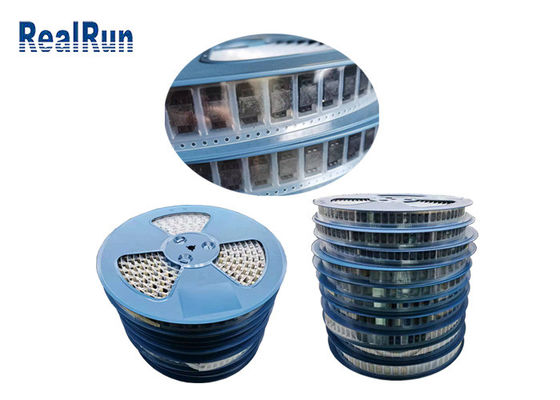

| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Current Rating: | 3A |
|---|---|---|---|
| Contact Resistance(max): | 30m Ohm Max At DC 3A | Insulation Resistance(min): | 1000M Ohm Min |
| Processing Temperature: | 260℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| Insulator: | PA6T+30%G.F UL94V-0 CAP:LCP | Contact: | Phosphor Bronze |
| Contact Plating: | Contact Area Gold 0.8μ" | ||
| High Light: | 30m Ohm Female Header Connector,LCP PA6T Female Header Connector,ISO9001 SMD Header Connector |
||

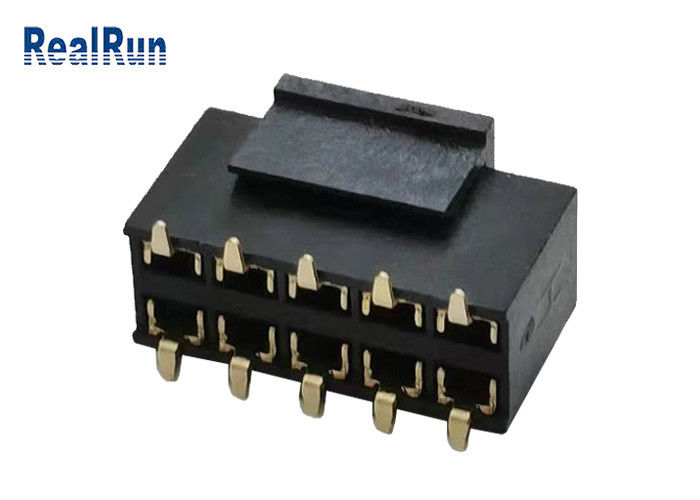

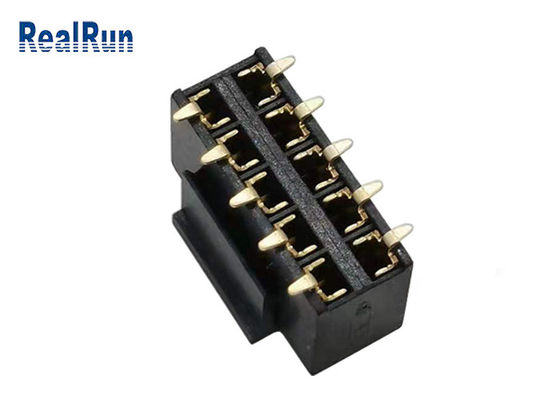

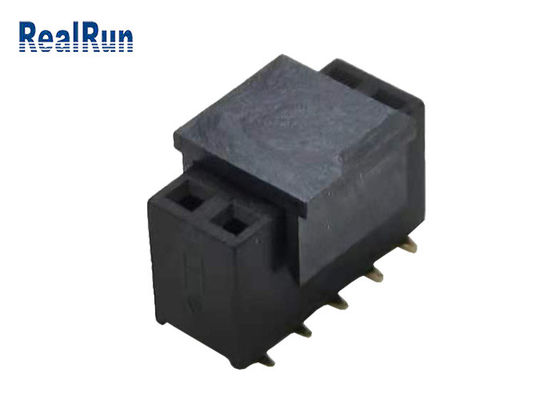

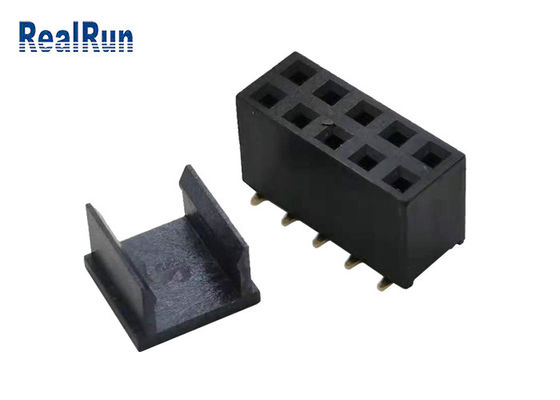

Phosphor Bronze 2.54Mm Pitch Female Header Motor Connector H7.1 SMD 2×5 Pin With Cap
| Product name: 2.54mm female header connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Please feel free to contact us and we will send you the drawings you need:
Specifications
1. Pitch:2.54mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA6T UL 94V-0
4. Contact Material: Phosphor Bronze
5: Mounting Type: Through Hole
6: Number of Row: Double Row
7: Contact Finish: Gold/Tin plated over Nickel
8: Termination: Solder
9: Color:Black
10: Current Rating:3A
11: Contact Resistance:30mΩ Max at DC 3A
12: Pin Length: Customization
13: Pin Available:2Pins to 80Pins
14. Plastic Height: 7.1mm
15. Fastening Type:Push-Pull
16. Style:Board to Board
17. Contact Type:Female Socket
18.Processing Temperature:260℃ for seconds
Our advantages
1. 15 years experience in the electronic connector.
2. Strong R＆Team. specialized in connector and modle design.
3. Quality Certification. Certified ROHS and REACH,SGS,ISO9001.
4. Strict Shipping. 100% tested before delivery.
5. Fast Delivery. Orders shipped in 3-10 days.
6. OEM/ODM. OEM/ODM service offered.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
Our advantages
1. Provide free samples
2. Accept ODM/OEM with strong R&D team
3. Fast response to your inquiry and feedback
4. Good quality with strict quality control
5. Professional after-sale team
Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 15 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
