| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-2*nP 10Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong,China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 2.54mm |
| Contact Material: | Brass | Insulator Material: | PBT+30%Glass/LCP Fiber, (UL94V-0) |
| Termination: | Solderless | Contact Plating: | Gold/Tin Over Nickel |
| Operation Temperature: | -40℃ To +105℃ | Insulation Resistance: | 1000MΩ Min |
| Current Rating: | 0.75A | Contact Resistance: | 30mΩ Max At DC 0.75A |
| High Light: | 0.75A PBT Pin Header Connector,UL94V-0 Brass Pin Header Connector,Double Row Header Connector SGS |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

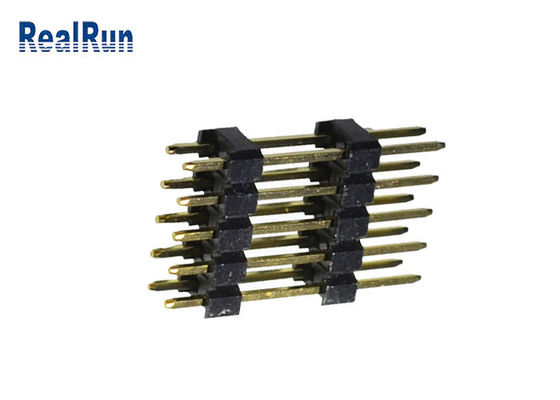

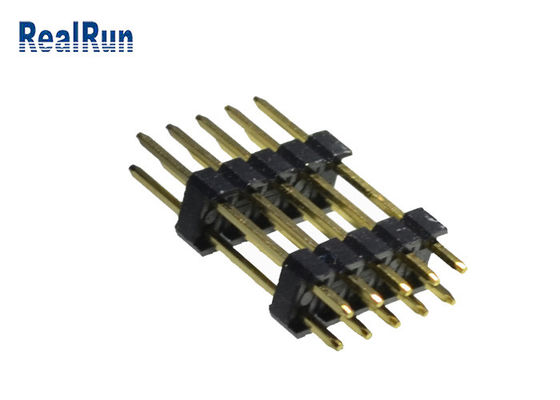

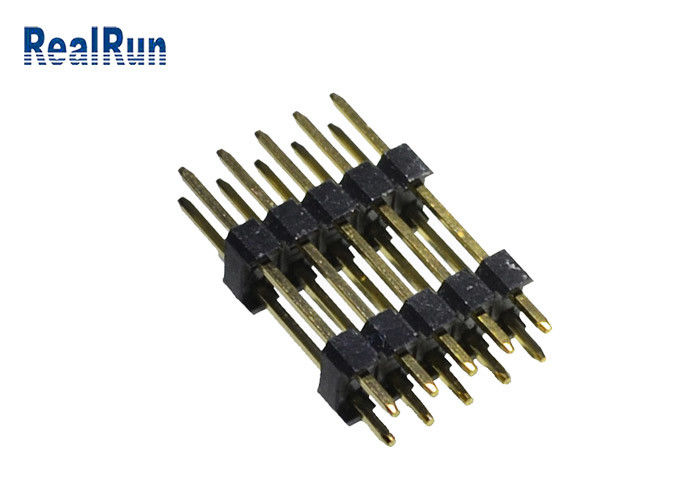

Low Profile 0.75A 2.54Mm Pin Header Double Row PBT UL94V-0 Brass Gold/Tin Plating 30mΩ Max
Product features:Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function:It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Straight/Dip type |
|
Insulator Color |
Black |
|
Insulator |
PBT+30%Glass/LCP Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Current Plating | Gold/Tin over Nickel |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
|
Insulator material |
PA6T PBT LCP |
| Contact Resistance | 30mΩ Max at DC 0.75A |
|
Packing |
Reel&tape packing |
| OEM/ODM | Accepted |
|
Mounting Type |
Through Holes |
Please feel free to contact us and we will send the drawings you need:
Why choose us?
We are a company specializing in PCB board connectors, with 15 years of manufacturing experience. We have our own processing plants, and most of our products are produced by ourselves, we have a professional research and development team and best advanced production equipment.
Our advantages
1. 10 years experience in the electronic business.
2. Strong R＆Team. specialized in connector and modle design.
3. Quality Certification. Certified ROHS and REACH,SGS,ISO9001.
4. Strict Shipping. 100% tested before delivery.
5. Fast Delivery. Orders shipped in 3-10 days.
6. OEM/ODM. OEM/ODM service offered.
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type
