| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-2*nP 4Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong,China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 2.54mm |
| Contact Material: | Brass | Insulator Material: | PA6T+30%Glass Fiber, (UL94V-0) |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Operation Temperature: | -40℃ To +105℃ | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 30mΩ Max At DC 0.75A | Processing Temperature: | (LPC): 260±5℃ For 10 Seconds |
| High Light: | DC 0.75A Pin Header Connector,Solder PA6T Pin Header Connector,DC 0.75A Male Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

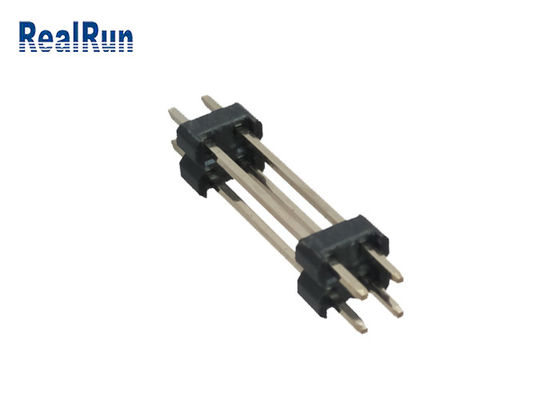

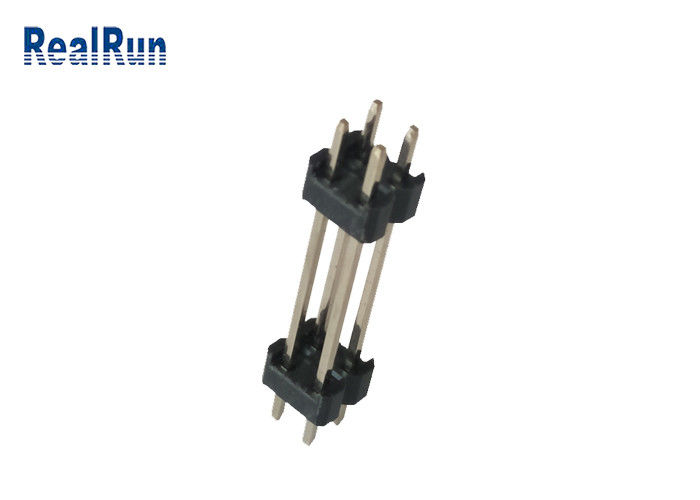

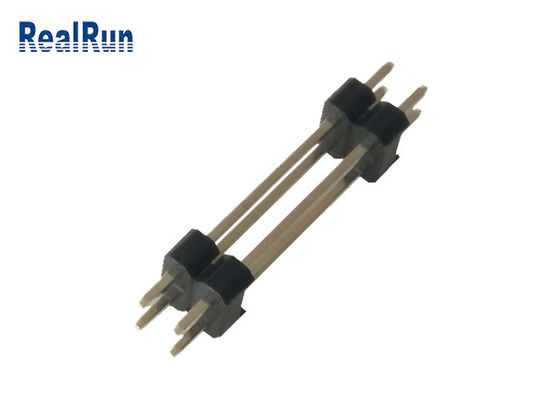

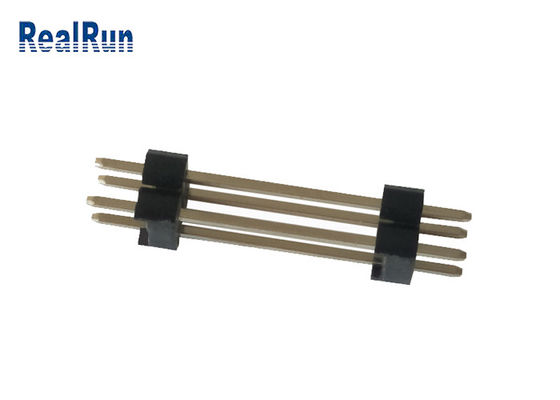

Pcb 2.54Mm Breakaway Pin Header Connector Double Row Straight H2.5 Black 4P
Product features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.
Product function: Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate.
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Straight/Dip type |
|
Insulator Color |
Black |
|
Insulator |
PA6T+30%Glass/LCP Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Plating | Gold/Tin over Nickel |
|
Contact Material |
Brass |
| Current Rating | 3A |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
|
Insulator material |
PA6T PBT LCP |
| Contact Resistance | 30mΩ Max at DC 0.75A |
|
Packing |
Reel&tape packing |
| OEM/ODM | Accepted |
|
Mounting Type |
Through Holes |
Please feel free to contact us and we will send the drawings you need:
FAQ
Q: Do you provide samples?
A: Yes, we can provide some free samples, but you need to pay the freight.
Q: Do you make the products by yourself?
A: Yes, we are factories. Most of our products are made by ourselves.
Q: How to send you drawing and pictures?
A: Send drawings and pictures to us through the online chat function of the platform.It's on the right side of the interface→
Q: When can i get the reply?
A: We will repliy your inquiry within 12 hours, please attention check you email.
Q: When i can get quotation?
A: After we confirm the products with you, we will offer you a quotation, so please attention check our reply.
Q: How long of your delivery?
A: Usually, if in stock 3-7 workdays,no stock 7-10 workdays,it depends on your quantity.
Q: Have you checked the goods before delivery?
A: Yes, please don't worry. we have a comprehensive inspection before delivery.
Q: If there is a quality problem, how do you deal with it?
A: In case of quality problems, Realrun will take full responsibility for the loss caused by the return and exchange of goods.
