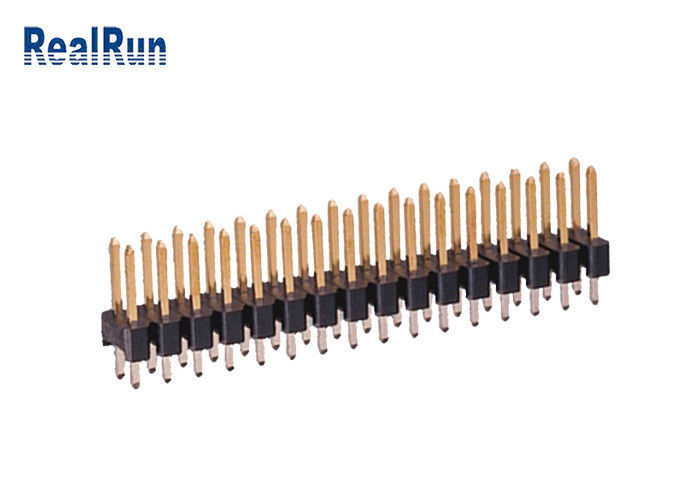

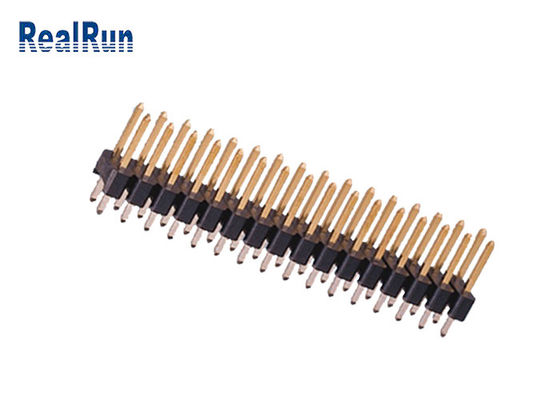

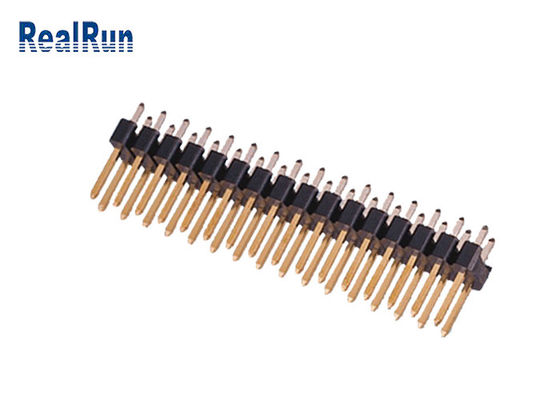

Brass PA6T 180° Straight Pin Header Connector 2.54mm UL94V-0 Double Row

Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

2.54Mm Double Row Half Gold-Tin Connector 180° Straight Pin Header Strip

Product features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to cable connection; it can also be used independently for board to board connection.

Product function: Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.

Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate.

Please feel free to contact us and we will send the drawings you need:

What's the Pin Header?

1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.

5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape,which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

6. Number of stitches: 02 to 80; 02 to 100;

7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

8. Surface treatment: gold plating 1u/3u/5u/10u and even more, thick gold, tin plating, nickel plating (1u=1uinch=1/39.37μm);

9. Material:

9-1: Terminal part: brass, or phosphor bronze;

9-2: Insulator part: PBT, PA46, PA6T, PA66, PA9T, LCP plastic UL94V-0 (UL94 is the standard, V-0 is the fire rating);
