Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*8.5-2*nT 12T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Current Rating: | 3A |
|---|---|---|---|
| Contact Resistance(max): | 20m Ohm Max At DC 3A | Insulation Resistance(min): | 1000M Ohm Min At DC500V |
| Processing Temperature: | 250±5℃ For 10 Seconds | Insulator: | PA6T+30%G.F UL94V-0 CAP:LCP |
| Contact: | Phosphor Bronze | Contact Plating: | Gold/Tin Over Nickel |
| High Light: | PA6T SMD Pin Header Connector,LCP CAP Pin Header Connector,DC500V Female Socket Connector |
||

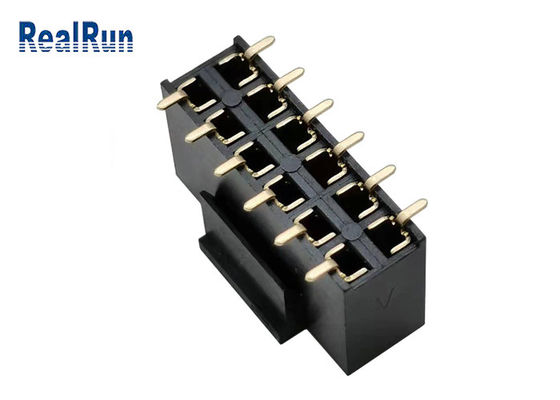

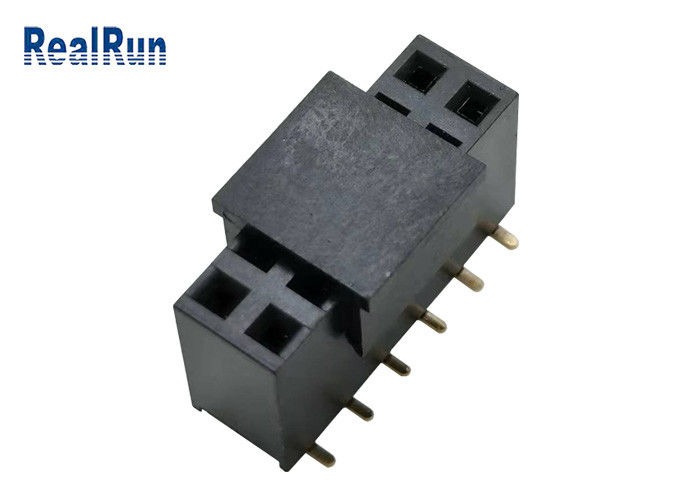

Rohs PA6T PH2.54*8.5 2*6P SMD Pin Header Female Phosphor Bronze Gold Plating
| Product name: 2.54mm female header connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Please feel free to contact us and we will send you the drawings you need:
Specifications
1. Pitch:2.54mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA6T UL 94V-0
4. Contact Material: Phosphor Bronze
5: Mounting Type: SMD
6: Number of Row: Double Row
7: Contact Finish: Gold/Tin plated over Nickel
8: Termination: Solder
9: Color:Black
10: Current Rating:3A
11: Contact Resistance:20mΩ Max at DC 3A
12: Pin Length: Customization
13: Pin Available:2Pins to 80Pins
14. Plastic Height: 8.5mm
15. Fastening Type:Push-Pull
16. Style:Board to Board
17. Contact Type:Female Socket
18.Processing Temperature:250±5℃ for 10 seconds
Our advantages
1. 15 years experience in the electronic connector.
2. Strong R＆Team. specialized in connector and modle design.
3. Quality Certification. Certified ROHS and REACH,SGS,ISO9001.
4. Strict Shipping. 100% tested before delivery.
5. Fast Delivery. Orders shipped in 3-10 days.
6. OEM/ODM. OEM/ODM service offered.
How to Packing:
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
