| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH1.27*4.9-nT 40T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 1.27mm |
| Plastic Height: | 4.9mm | Insulator Material: | PA6T+30%Glass Fiber, UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold Or Tin Over Nickel |
| Current Rating: | 1A | Contact Resistance(max): | 30mΩ Max At DC2A |
| Insulation Resistance(min): | 1000MΩ Min | Operating Temperature: | -40℃ To +105℃ |
| Processing Temperature: | 260℃ For 10 Seconds | ||
| High Light: | PA6T Header Idc Connector,LCP Brass Header Idc Connector,DC2A Dual Row Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

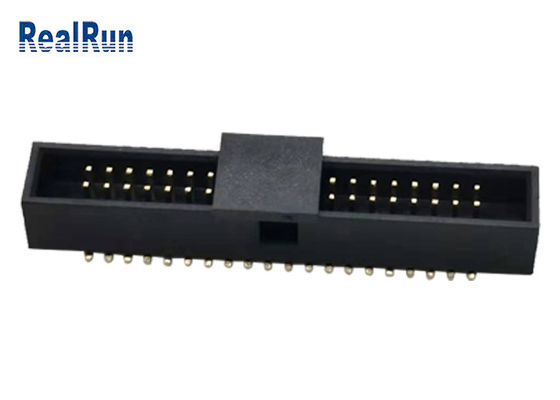

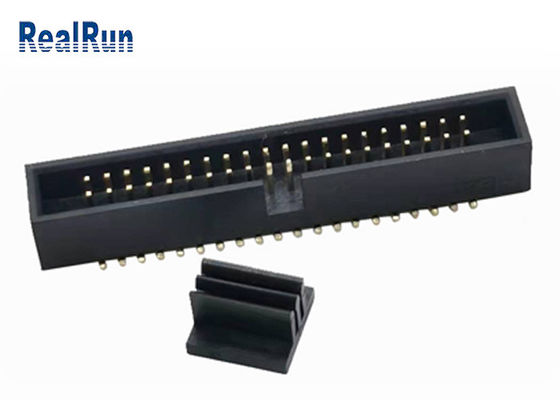

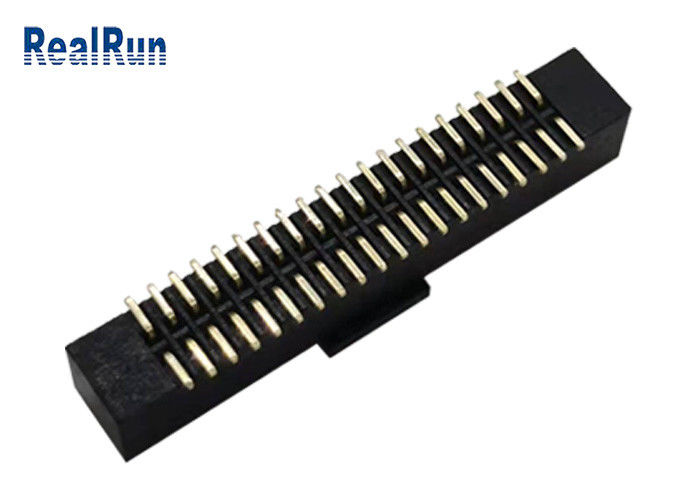

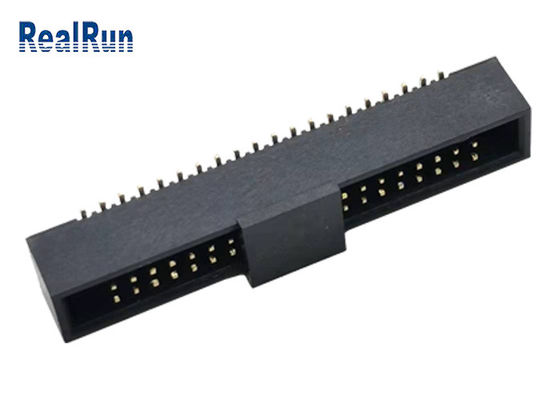

PA6T 1.27 Dual Row SMD Pin Box Header Idc Connector Male 40Pin With Cap
| Name | Box Header Connector/PCB Connector |
| Pitch | 1.27mm |
| Plastic Height | 4.9mm |
| Type | SMD Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PA6T+30%Glass Fiber, UL94V-0 |
| Current Rating | 1 A |
| Contact Resistance(max) | 30m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or Gold over nickel |
| Insulator material | PA6T/LCP |
| Operation Temperature | -40~105℃ |
| Packing | Bag/Tray Packing/Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | SMD Solder |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |
Please feel free to contact us and we will send you the drawings you need.
Description
1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.
3. It is usually used to transmit control signals and weak current.
