Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH1.27*4.9-nW 50W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 1.27mm |
| Plastic Height: | 4.9mm | Insulator Material: | PA6T UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold Or Tin Over Nickel |
| Current Rating: | 3A | Contact Resistance(max): | 30mΩ Max At DC 3A |
| Insulation Resistance(min): | 1000MΩ Min | Operating Temperature: | -40℃ To +105℃ |
| High Light: | PA6T UL94V-0 IDC Box Header,50P IDC Box Header,SGS Right Angle Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

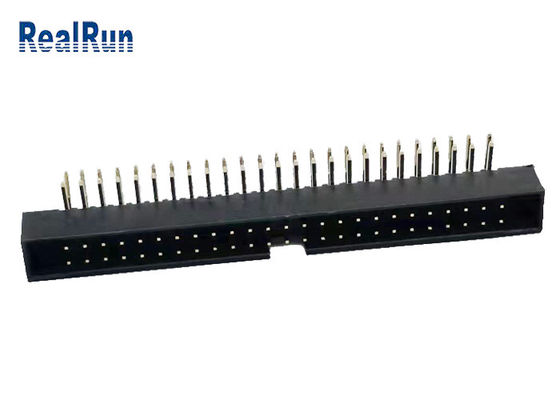

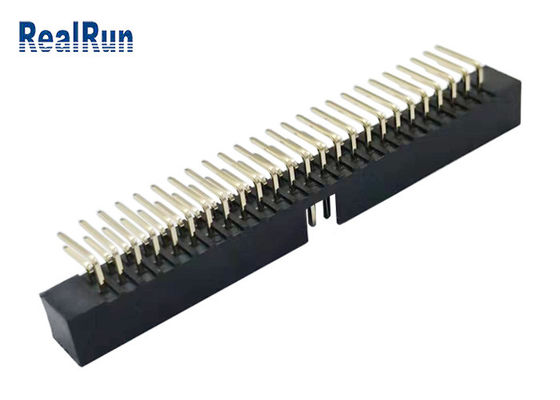

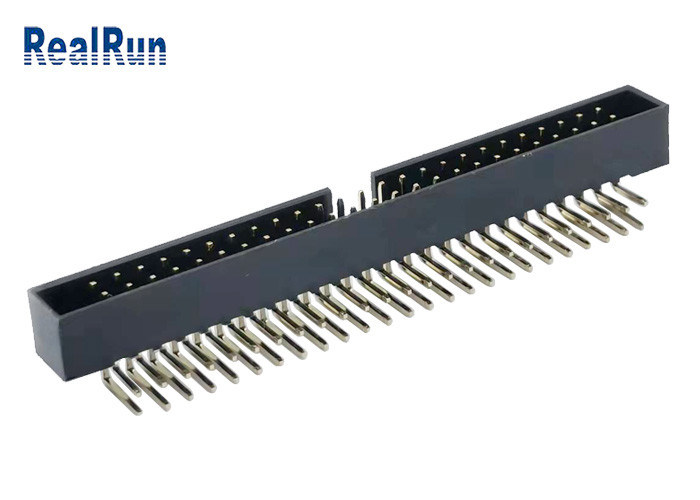

Gold Flash PA6T 1.27Mm Double Row Shrouded Pin IDC Box Header 50P Right Angle
| Name | Box Header Connector/PCB Connector |
| Pitch | 1.27mm |
| Plastic Height | 4.9mm |
| Type | Right Angle Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PA6T UL94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30m ohm Max at DC3A |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or Gold over nickel |
| Insulator material | PA6T/LCP/PA9T/PBT |
| Operation Temperature | -40~105℃ |
| Packing | Bag/Tray/Tube/Reel Packing/Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | 90 Degree Solder |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |
Please feel free to contact us and we will send you the drawings you need.
Description
1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.
3. It is usually used to transmit control signals and weak current.
Why choose RealRun for supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
FAQ
Q1. Can I have a sample order for Connector?
