| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-1*nW 4W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Contact Material: | Brass |
|---|---|---|---|
| Insulator Material: | PA6T+30%Glass/LCP Fiber, UL94V-0 | Termination: | Solder |
| Contact Plating: | Gold/Tin Over Nickel | Operation Temperature: | -40℃ To +105℃ |
| Insulation Resistance: | 1000MΩ Min | Contact Resistance: | 30mΩ Max |
| Current Rating: | 3A | Processing Temperature: | 260℃ For 10 Seconds |
| High Light: | LCP Fiber Male Header Connector,PA6T Solder Male Header Connector,Double Plastic Right Angle Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

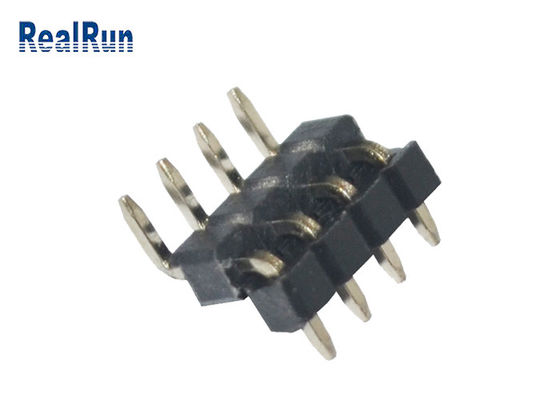

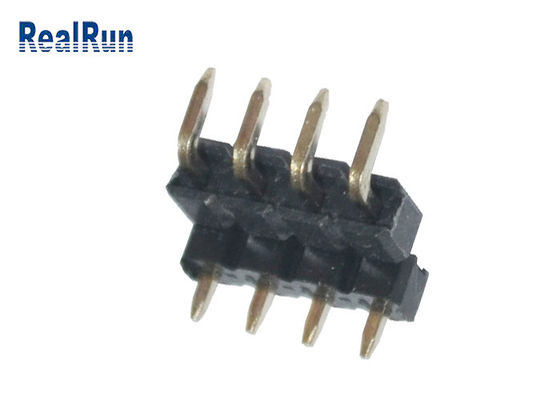

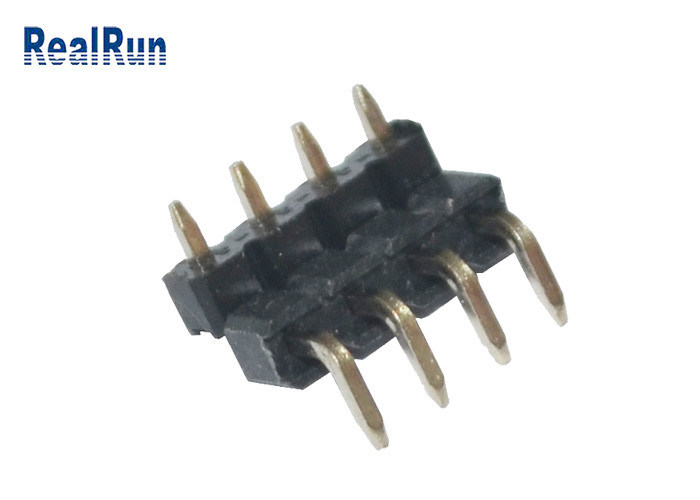

Right Angle Male Pin Header Black Brass 2.54 Mm Pitch Connector Double Plastic H=2.0Mm
Product features: Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Solder |
|
Insulator Color |
Black |
|
Insulator |
PBT/PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 30mΩ Max |
| Current Rating | 3A |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Reel&tape packing |
| OEM/ODM | Accepted |
|
Mounting Type |
Right Angle Type |
What is the Pin Header Connector?
Pin Header Connector are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
