| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-1*nW 17W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PA6T+30%Glass Fiber, UL94V-0 |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Operation Temperature: | -40℃ To +105℃ | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 30mΩ Max | Current Rating: | 3A |
| High Light: | LCP PBT Right Angle Header Connector,Right Angle Header Connector UL94V-0,Oxidation Resistance PCB Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

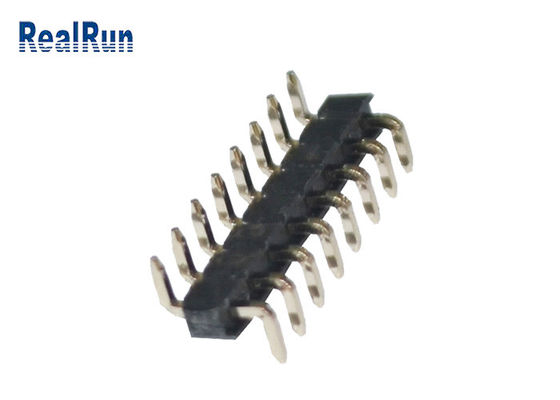

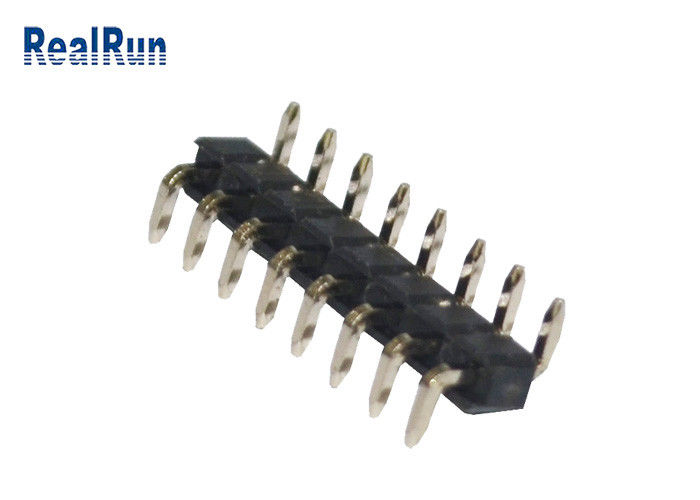

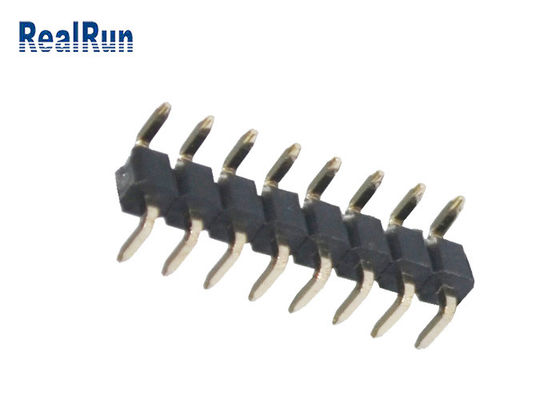

Single Row 17P Reverse bending Pin Header 2.54Mm Right Angle Black Gold Plated
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.
3. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Solder |
|
Insulator Color |
Black |
|
Insulator |
PBT/PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 30mΩ Max |
| Current Rating | 3A |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Reel&tape packing |
| OEM/ODM | Accepted |
|
Mounting Type |
Right Angle Type |
OEM/ODM Capability
Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.
OEM services encompass buyers logo or label, designs services plus a whole after sales support package.
Payment Terms
There are many payment methods available such as D/A, D/P, T/T and Paypal.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
Q: If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q: Which payment can be accepted:
1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
