Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-1*nW 6W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PA6T/PBT+30%Glass Fiber, UL94V-0 |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Operation Temperature: | -40℃ To +105℃ | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 30mΩ Max At DC 3A | Current Rating: | 3A |
| High Light: | 2.54mm Single Row Pin Header Connector,UL94V-0 Solder Pin Header Connector,VCD DVD Single Row Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

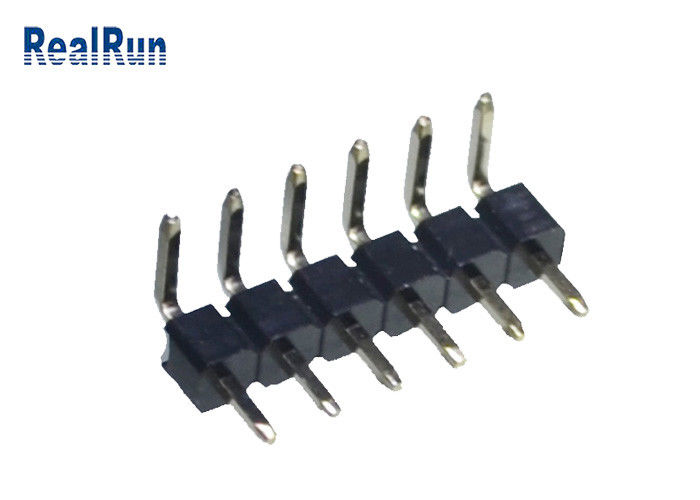

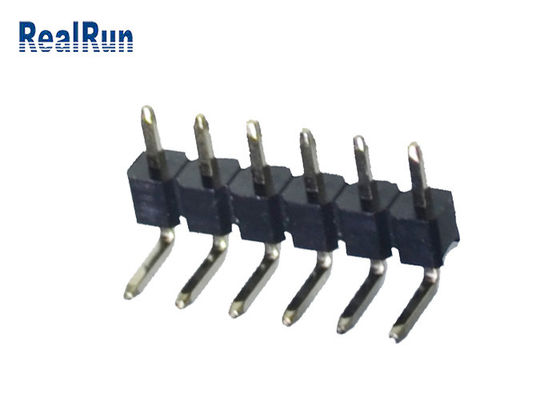

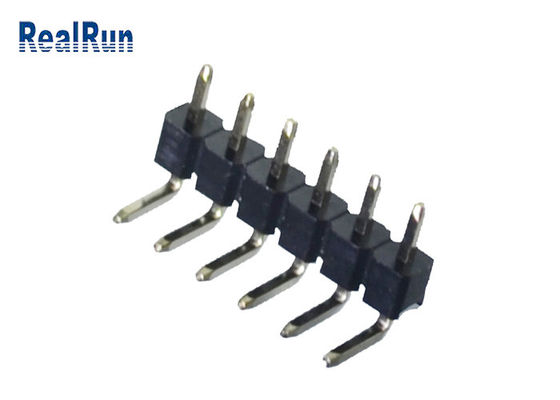

2.54 Mm Single Row Black Right Angle Male PA6T Pin Header Connector ROHS Approved
Product features: Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
|
Name |
Pin Header Connector |
|
Pitch |
2.54mm |
|
Type |
Solder |
|
Insulator Color |
Black |
|
Insulator |
PBT/PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 30mΩ Max at DC 3A |
| Current Rating | 3A |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Reel&tape packing |
| OEM/ODM | Accepted |
|
Mounting Type |
Right Angle Type |
Please feel free to contact us and we will send the drawings of you need.
Why choose RealRun for supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
FAQ
Q: Are you trading company or factory?
A: We are a factory with 15 years of connector manufacturing experience.
Q: What's your terms of payment?
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Can i get some samples?
A: Yes, some samples are for free.
Q: Has the product been check before delivery?
A: Yes, we have 100% full check before delivery.
Q: Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.
