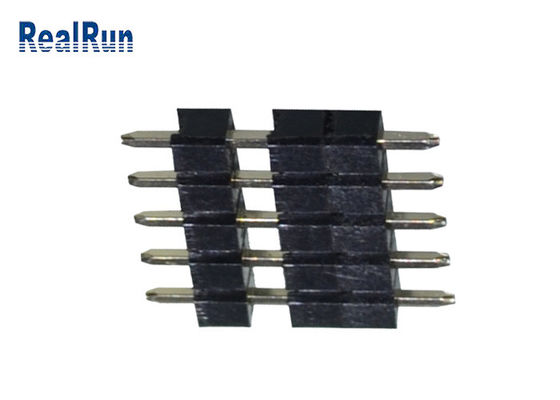

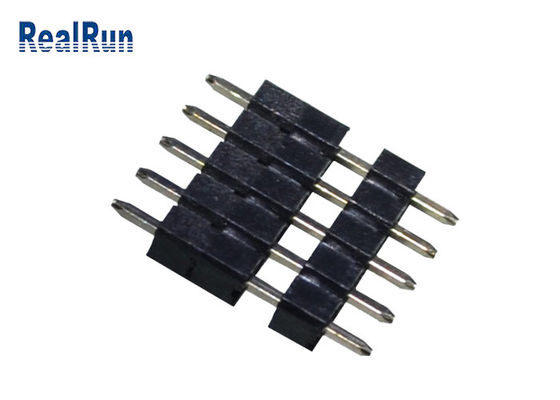

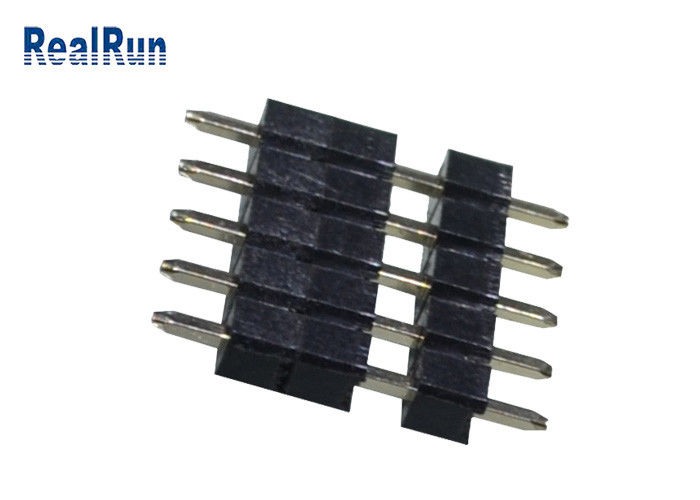

5P Brass Plastic THT Pcb Solder Connector Straight Dip Pin Header PBT LCP

Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

UL94V-0 2.54Mm 5P Straight Dip Pin Header Three Plastic Pcb THT Solder Connector
Product features: Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is made of brass wire, phosphor copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..

Please feel free to contact us and we will send the drawings of you need.

Why choose us?

We are a company specializing in PCB board connectors, with 15 years of manufacturing experience. We have our own processing plants, and most of our products are produced by ourselves, we have a professional research and development team and best advanced production equipment.

What's the Pin Header?

1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.

5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape,which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the Height: 1.0/1.5/2.5mm;

5. Number of stitches: 02 to 80;

6. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

7. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

8. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;
