Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*8.5-1*nW 5W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54Mm | Insulator: | PA6T UL94V-0 |
|---|---|---|---|
| Current Rating: | 3.0A | Contact Resistance(max): | 20m Ohm Max At DC 3.0A |
| Insulation Resistance(min): | 1000M Ohm Min At DC 500V | Contact: | Brass |
| Contact Plating: | Gold/Tin Over Nickel | Withstanding Voltage: | 500V AC/minute |
| High Light: | 3.0A Brass Female Header Connector,LCM LED Female Header Connector,500VAC Through Hole Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

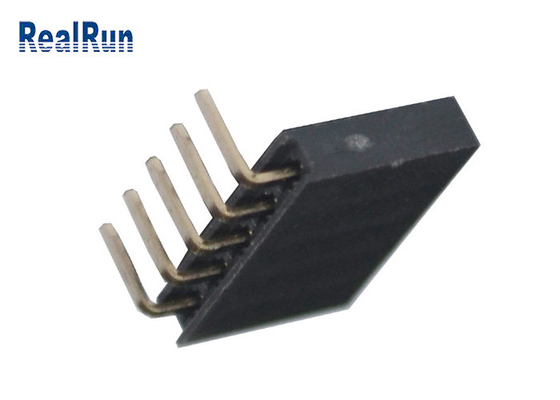

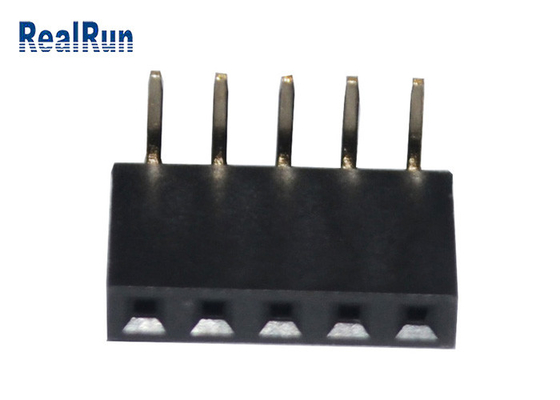

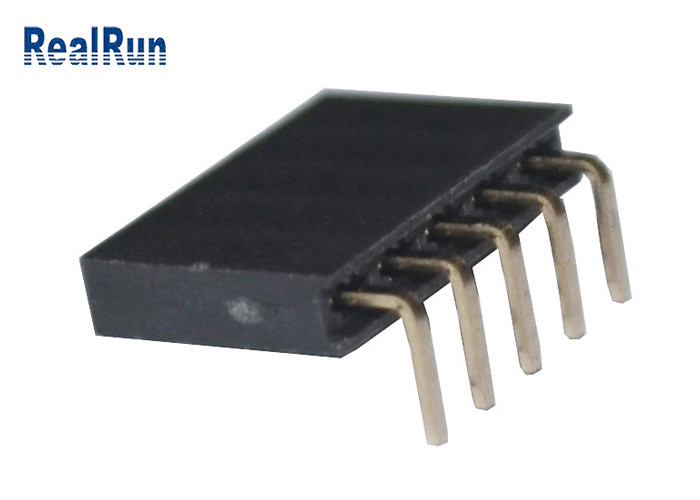

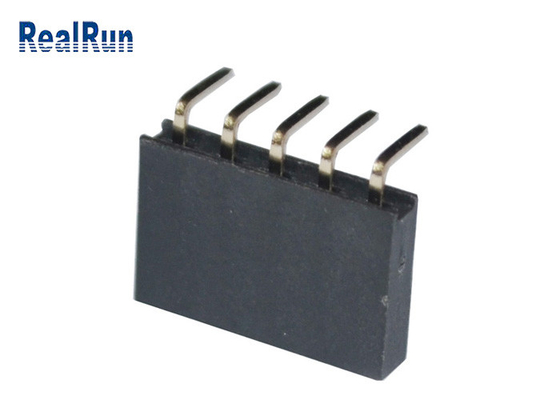

OEM ODM 0.1" Female Header 90 Degree 5 Pin Connector Through Hole Welding Socket
Product features: Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
| Name | Pin Header Connector |
| Pitch | 2.54mm |
| Type | Solder |
| Insulator Color | Black |
| Insulator | PBT/PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 20mΩ Max at DC 1.5A |
| Current Rating | 1.5A |
| Contact Material | Brass |
| Withstanding Voltage | 500VAC/minute |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact Plated | Gold/Tin over Nickel |
| Processing Temperature | PBT: 230±5℃ for 10 seconds |
| Insulator material | PA6T PBT LCP |
| Packing | Reel&tape packing |
| OEM/ODM | Accepted |
| Mounting Type | Right Angle Type |
Please feel free to contact us and we will send you the drawings of you need:
Why choose RealRun for supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
How to Packing?
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
