| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*5.0-2*nT 32T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.54Mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PA6T+30%Glass Fiber, (UL94V-0) |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Operation Temperature: | -40℃ To +105℃ | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 20mΩ Max | Processing Temperature: | 260℃ For 10 Seconds |
| Current Rating: | 3.0A | Withstanding Voltage: | 500V AC/minute |
| High Light: | PA6T GF Pin Header Connector,LCP PBT Pin Header Connector,LCM LED SMT Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

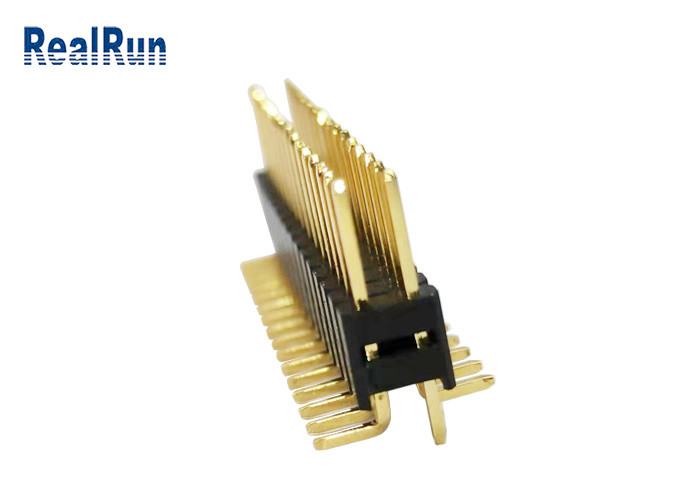

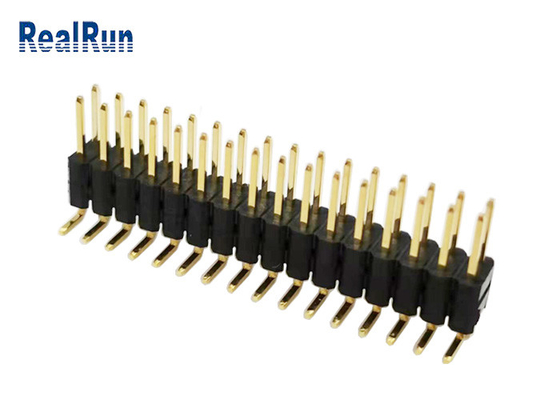

PA6T+30%GF Pin Header Dual Row Plastic H5.0 Vertical SMD Type Au 1.5μ" With Locating Pin
Product features: Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
|
Name |
Pin Header Connector |
|
Pitch |
2.54Mm |
|
Type |
SMT type |
|
Insulator Color |
Black |
|
Insulator |
PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 20mΩ Max at DC 3.0A |
| Processing Temperature | -40℃ to +105℃ |
| Current Rating | 3.0A |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
| Processing Temperature | 260℃ for 10 seconds |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Bag packing |
| OEM/ODM | Accepted |
|
Mounting Type |
SMD Type |
Please feel free to contact us send you the drawings of you need:
Classification of pin header
According to pitch: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic: single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
Why choose RealRun?
The company is located in Shenzhen Guangming new district, with a floorage of 1500sq.m. for plant and 100 employees.The company has a skilled R&D and management team, and first-class level of advanced production equipment and precision testing instruments. The domestic market is main in south China, radiation throughout the country, the international market is main in Hong Kong, Taiwan and the global clients.
FAQ
Q: How long will it take to receive the goods?
A: It depends on the quantity of your order, usually 3-7 workdays if the goods are in stock.
Q: Do you check the products before shipment?
A: Yes, before shipment, we will check the products in multiple layers to ensure that there are no quality problems, and then package them out of the warehouse.
Q: If there is a product quality problem, what should you do?
A: This kind of situation will not happen basically. In case it happens, we will negotiate with you about the solution and reach an agreement.We will bear the return and exchange costs incurred by the product quality.
Q: Where is your factory, can i visit it?
A: Yes, welcome. our company is in Juhui Industrial Park, Yutang street, Tianliao village, Guangming New District, Shenzhen, China.
