Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach, IATF16949 |
| Model Number: | BS-2032-6SN |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Natural Color | Contact Material: | Phosphor Bronze |
|---|---|---|---|
| Insulator Material: | Thermo Plastic Glass Fiber (UL94V-0) | Contact Plating: | Gold/Tin(Sn100u") |
| Operation Temperature: | -25℃~+85℃ | Insulation Resistance: | 1000Mega Ohms Min |
| Contact Resistance: | 30mΩ Max | Dielectric Voltage: | 500V AC One Sec Level |
| High Light: | Coin Button Battery Cell Holder,Sn 100u" SMT Battery Holder,Phosphor Bronze SMT Battery Holder |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

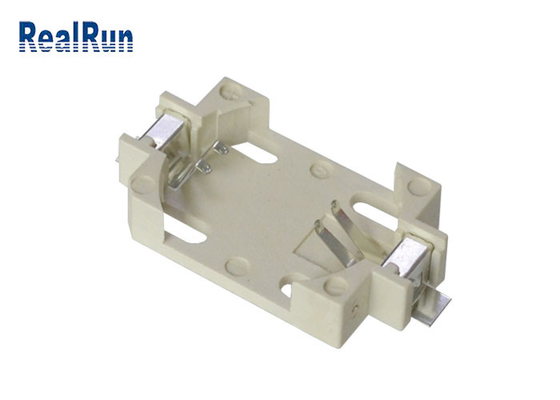

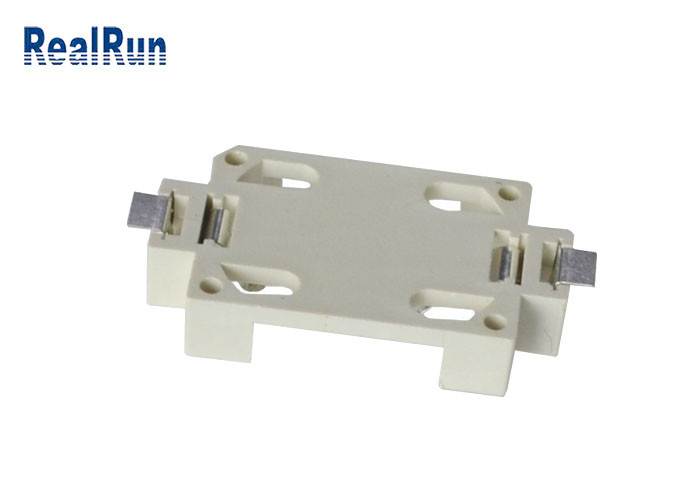

CR2032 SMT Type Battery Holder Sn 100u" BS-6 Coin Button Battery Holder
Product material: High temperature resistance LCP, phosphor bronze terminal tin plated.
Product performance: Environmental protection and high temperature resistance plastic, high conductivity of phosphor bronze conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Application Scope: Coin battery holder is used to load coin batteries and is generally welded on the PCB board to facilitate the coin battery power supply module clock or other consumer electronic products.
|
Name |
Battery Holder |
|
Housing |
Thermo plastic glass fiber (UL94V-0) |
| Operation Temperature | -25℃~+85℃ |
| Current Rating | 7A |
| Contact Resistance | 30mΩ Max |
|
Insulation Resistance(min) |
100M ohm |
| Rated Voltage | 500V AC One Sec Level |
|
Contact Plating |
Gold or Tin Plating(Sn100u") |
|
Contact |
Phosphor Bronze |
| OEM/ODM | Accepted |
Please feel free to contact us send you the drawing of you need:
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
Why choose RealRun?
1. We has already acquired ISO9001, TS16949 quality management system certification; ISO14001, QC080000 environment and management systems certification and OHSAS18001 occupation health safety management system certification.
2. All the products are available for customized packaging according to your demand.
3. Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
4. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities;
