| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*8.5-2*nW 6W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54Mm | Insulator: | PA6T UL94V-0 |
|---|---|---|---|
| Current Rating: | 1.5A | Contact Resistance(max): | 20m Ohm Max At DC 1.5A |
| Insulation Resistance(min): | 1000M Ohm Min At DC500V | Contact: | Phosphor Bronze |
| Contact Plating: | Gold/Tin Over Nickel | Withstanding Voltage: | 500V AC/minute |
| Operation Temperature: | -40℃ To +105℃ | ||
| High Light: | PA6T DIP Female Header Connector,Y Terminal Female Header Connector,1.5A Pcb Female Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

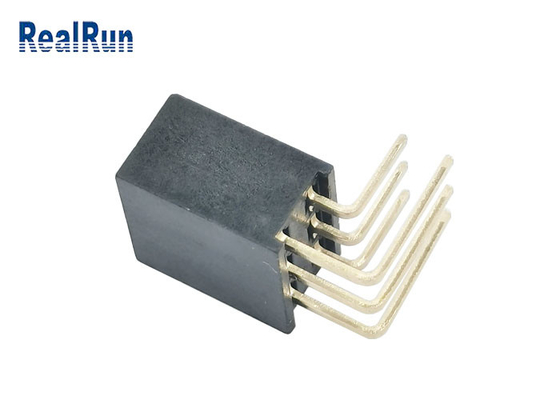

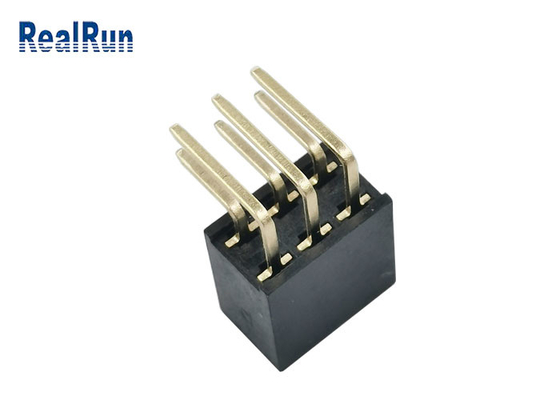

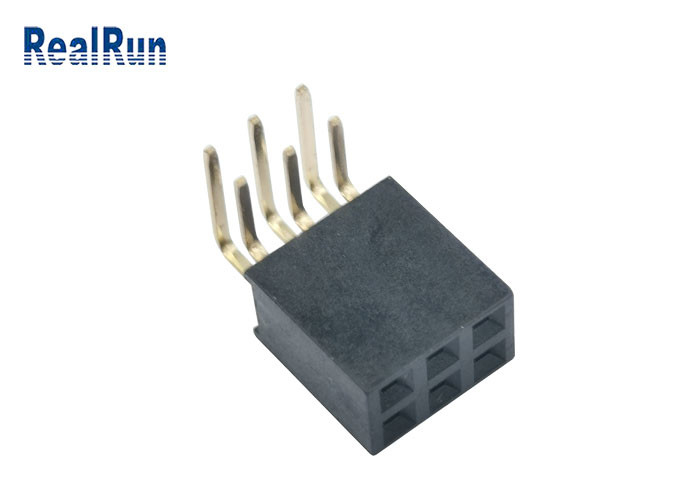

PA6T Gold 1μ" 2*3 Pin Female Header Y-Terminal Connector H8.5 Right Angle Type
| Product name: 2.54mm female header connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Please feel free to contact us and we will send you the drawing of you need:
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type
FAQ
Q: Whether supply custom?
A: Yes,we are a professional manufacturer of connector and wire harness and custom for clients.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: How to buy your products?
A: You can directly contact our sales team by skype email or make a call,we will respond within 12 hours.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
Q: What are your products applied to?
A: Automotive use, Industial use, Home applicance, Electronic etc.
