| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH2.54-nP 16P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Insulator Material: | PBT/PA6T | Contact Plating: | Gold/Tin Over Nickel |
|---|---|---|---|
| Current Rating: | 3A | Termination: | Solder |
| Contact Resistance: | 20mΩ Max | Pin Available: | 2 Pins To 80 Pins |
| High Light: | Crimp Wire Box Header Connector,16P IDC Box Header Connector,PBT Shroud Pin Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

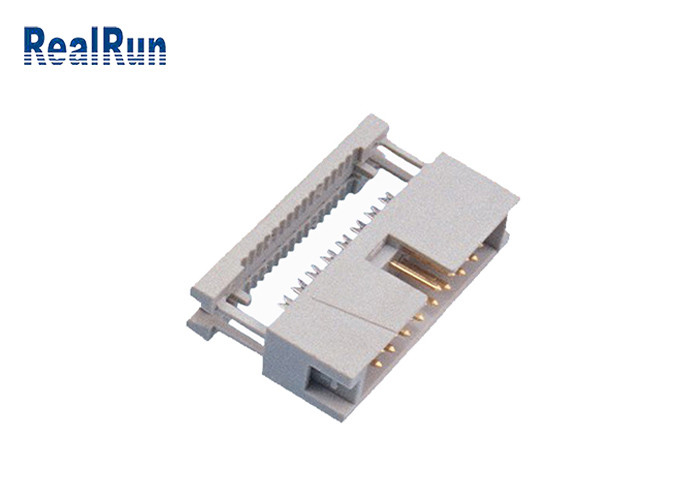

16P IDC Type Crimp Wire Box Header Connector Shroud Pin Header Gold Plated
| 1. Current Rating | 3AMP |
| 2. Contact Resistance | 30mΩ Max |
| 3. Withstand Voltage | 500V AC/DC |
| 4. Insulation Resistance | 1000mΩ Min |
| 5. Operation Temperature | ﹣40℃ to +105℃ |
| 6. Contact Material | Brass |
| 7. Contact Plating | AU Sn over Ni |
| 8. Insulator Material | LCP+33％GF UL94V-0 |
Product Name: Shrouded Header Connector
1. features: high temperature resistance, high voltage electrical conductivity.
2. material: PA9T/LCP/PBT plating surface treatment: gold or tin.
3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current.
Scope of application:
Shrouded Header Connector is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
Please feel free to contact me and i will send you the drawing of you need:
How to Packing:
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacturer in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
