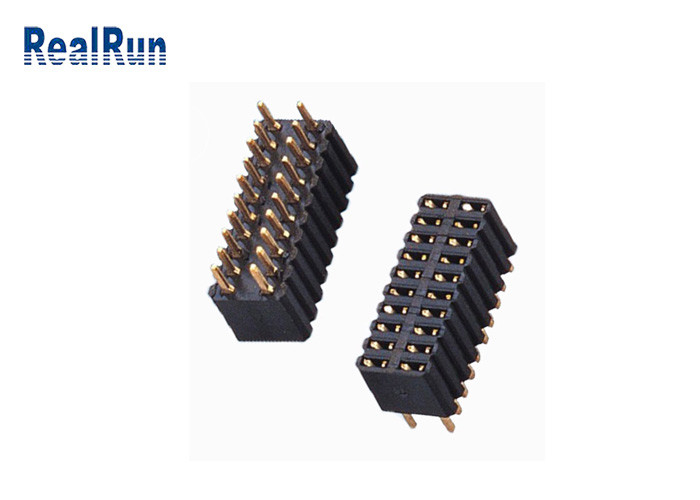

PBT Brass Pcb Female Header PA9T LCP 180 Degree Straight Pcb Connector

FH1.27 Pitch Female Header Dip Solder 180 Degree Straight Pcb Connector

Item name: female connector

1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.

2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.

3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.




Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal;

FAQ

1. What kinds of products are you supply ?

Our main products are screw terminal blocks, spring terminal blocks, barrier terminal blocks, feed through terminal blocks, din rail terminal blocks, pin header, female header,Box Header,Shrouded Header,Switch,IDC socket,FD Connector,Cable Gland,Micro Jack,Cable Ties,MINI DIN,Flat Cabel,IC socket, D-SUB connector, DIN41612 socket , etc. .

2. Your products according to which kind of stardard certificates ?

All products are in line with the RoHS directive, in full accordance with CE, UL, VDE, SGS, REACH and other standard production.

3. What is your payment terms ?

We accept TT, paypal , L/C , etc.

4. What your MOQ ?

For regural items , we do not request for MOQ , for special items , can discuss later .

5. Can you supply free samples ?

Yes , we can supply 20 pcs samples as free .
