| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH1.27*5.7-2*nP 20P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.27mm | Color: | Black |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T/PA9T/LCP/PBT |
| Processing Temperature: | 260±5℃ For 10 Seconds | Plastic Height: | 5.7mm |
| Number Of Pins: | Customizable | Current Rating: | 1A AC/DC |
| High Light: | PA6T LCP Female Header Connector,Fireproof Female Header Connector,LCP PBT Female Pcb Connector |
||

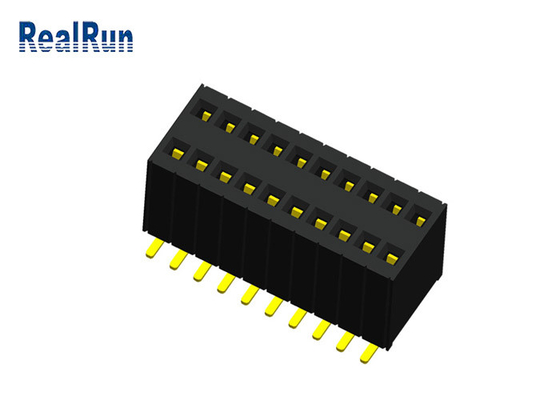

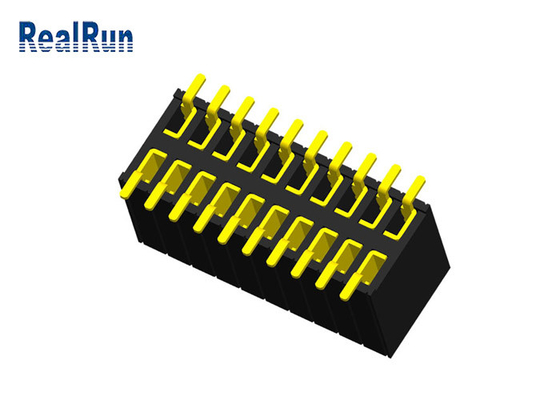

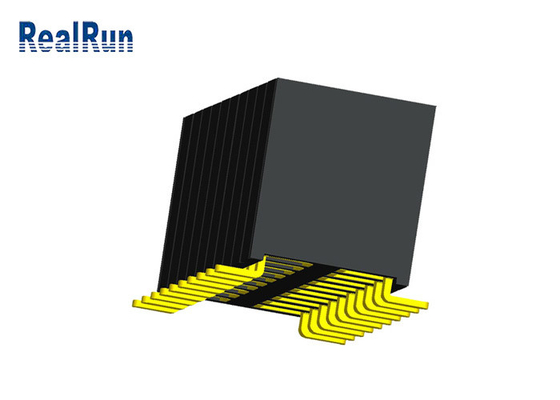

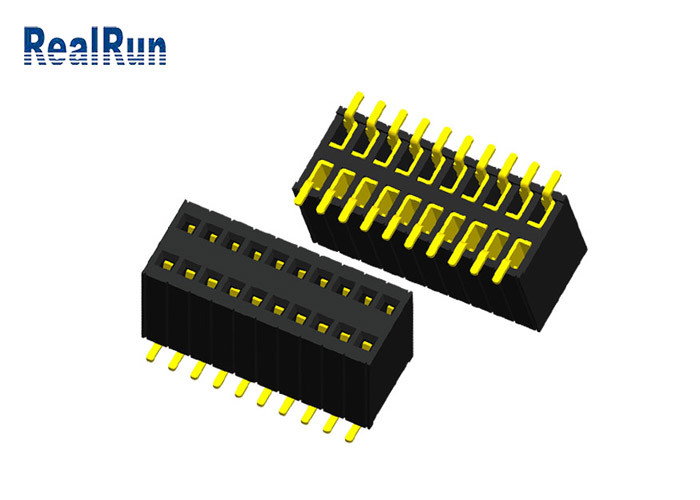

1.27Mm Female Header SMD Type H5.7 2*20P With Cap Socket Pcb Connector
| Current Rating | 1.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
Item name: female header connector
1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.
3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Please feel free to contact me send you the drawing of you need:
Our advantage:
1. 15 year's manufacture experience.
2. Professional team and strong R & D capabilities.
3. Advanced production equipment.
4. High quality product.
5. Competitive price.
6. Fast delivery.
Our Services:
1. We value our customers’ trust in sourcing for the most suitable components for their requirements.
2. We only offer what is best for our customers, knowing each customer is unique.
3. Our fast, innovative service will ensure that our customers’ needs are answered
4. We value every customer, no matter small or medium volume orders.
5. Our business is not just about components supply, it’s about delivering promises.
6. Our aim is make sourcing connector easy for you
7. We'll reply your inquiry within 12hours,Online Inquiry is Welcome.
8. We provide OEM,ODM services
9. 20pcs free samples, For repeat order customer, We'll provide more than 20pcs samples for prototype project if necessary.
10. Your one-stop source for components solutions.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
