Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH1.27*5.7-2*6T 12T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.27mm | Color: | Black |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T/PA9T/LCP/PBT |
| Processing Temperature: | 260℃ For 10 Seconds | Plastic Height: | 5.7mm |
| Number Of Pins: | Customizable | ||
| High Light: | PA6T Female Header Connector,Phosphor Copper Contact Female Header Connector,SMD Type 1.27 Mm Female Header |
||

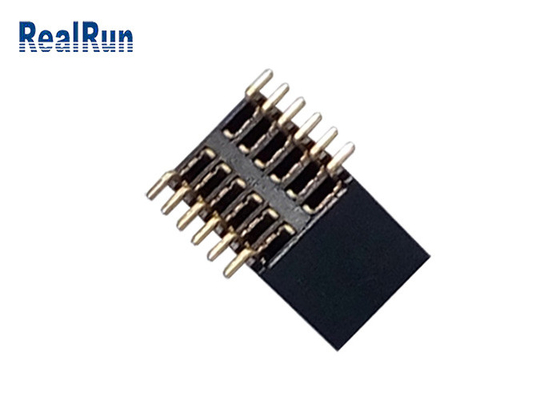

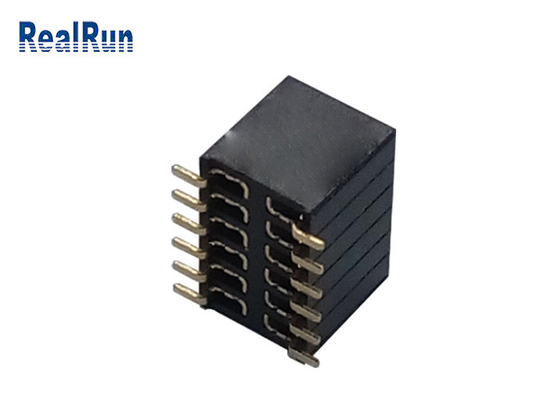

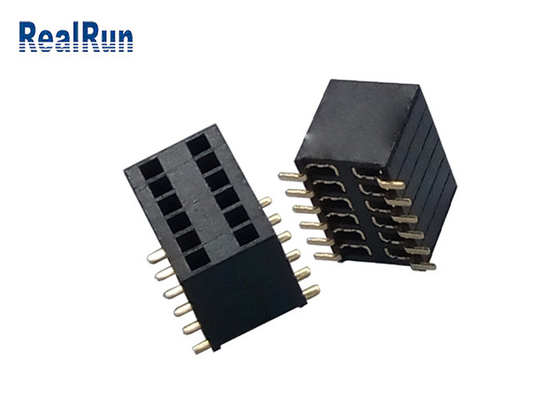

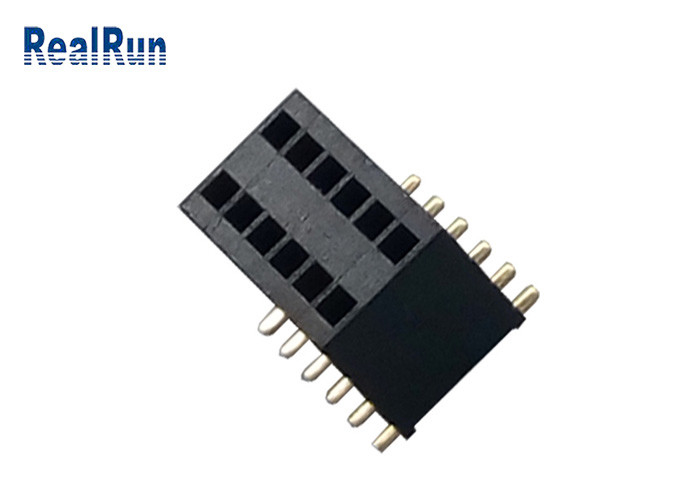

2*6T Female Header 1.27 Pitch Height 5.7 SMD Type Contact Phosphor Copper
| Current Rating | 1.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
Item name: female header connector
1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. product material: PA6T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.
3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Please feel free to contact me send you the drawing of you need:
OEM/ODM Capability
Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.
OEM services encompass buyers logo or label, designs services plus a whole after sales support package.
Customer Satisfaction
Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Payment Terms
There are many payment methods available such as D/A, D/P, T/T and Paypal.
FAQ
Q: Are you trading company or factory?
A: We are a factory with 15 years of connector manufacturing experience.
Q: What's your terms of payment?
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Can i get some samples?
A: Yes, some samples are for free.
Q: Has the product been check before delivery?
A: Yes, we have 100% full check before delivery.
Q: Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.
