| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH1.27*4.3-2*10T 20T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.27mm | Color: | Black |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T/PA9T/LCP/PBT |
| Processing Temperature: | 260℃ For 10 Seconds | Plastic Height: | 4.3mm |
| Number Of Pins: | Customizable | ||
| High Light: | PA6T 20P Female Header Connector,U Terminal Female Header Connector,UL94V-0 PCB Board To Board Connectors |
||

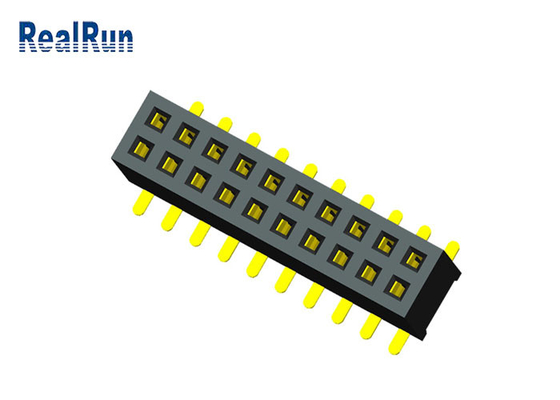

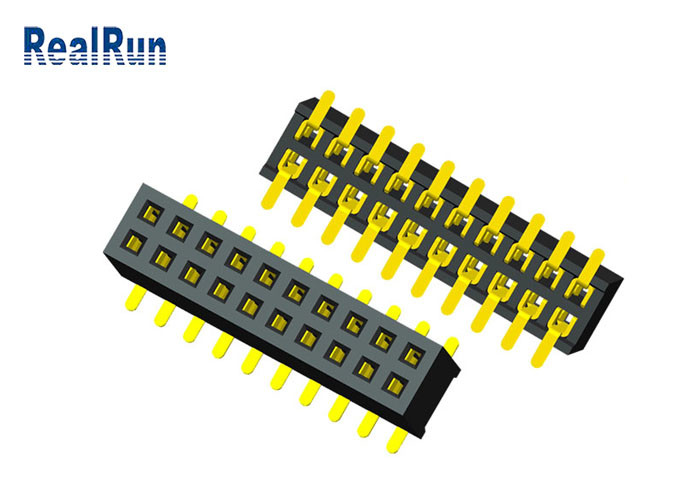

PA6T 20P Pcb Female Btb Connector Vertical Smt U Terminal Gold Flash 1.27 Header
| Current Rating | 1.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | Phosphor Bronze |
| Contact Plating | Au or Tin over Nickel |
| Insulator Material | PA6T+30％GF UL94V-0 |
Item name: female header connector
1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.
3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Please feel free to contact me send you the drawing of you need:
How to Packing:
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
FAQ
1. What kinds of products are you supply ?
Our main products are screw terminal blocks, spring terminal blocks, barrier terminal blocks, feed through terminal blocks, din rail terminal blocks, pin header, female header,Box Header,Shrouded Header,Switch,IDC socket,FD Connector,Cable Gland,Micro Jack,Cable Ties,MINI DIN,Flat Cabel,IC socket, D-SUB connector, DIN41612 socket , etc. .
2. Your products according to which kind of stardard certificates ?
All products are in line with the RoHS directive, in full accordance with CE, UL, VDE, SGS, REACH and other standard production.
3. What is your payment terms ?
We accept TT, paypal , L/C , etc.
4. What your MOQ ?
For regural items , we do not request for MOQ , for special items , can discuss later .
5. Can you supply free samples ?
Yes , we can supply 20 pcs samples as free .
