Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.0*7.2-2*nW 30W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Current Rating: | 2A |
|---|---|---|---|
| Contact Resistance(max): | 20M Ohm | Insulation Resistance(min): | 1000M Ohm |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| Number Of Position: | 30 Position | Insulator: | PA6T/PA66+30%G.F (UL94V-0) |
| Contact: | Brass | Contact Plating: | Gold/Tin Over Nicke |
| High Light: | dual Row female pin header connector,ISO9001 female pin header connector,right angle pin header UL94V-0 |
||

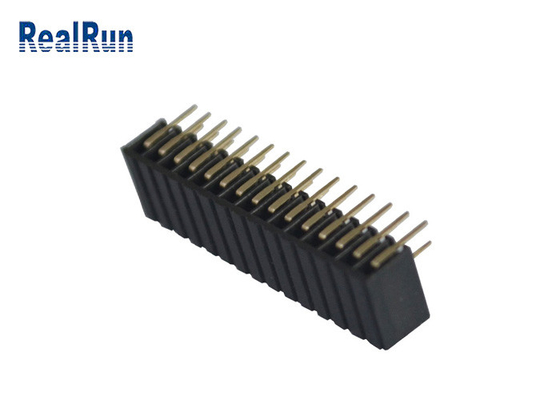

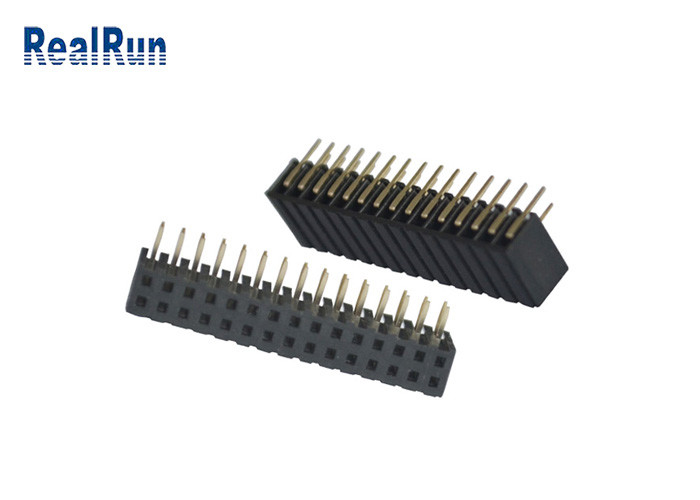

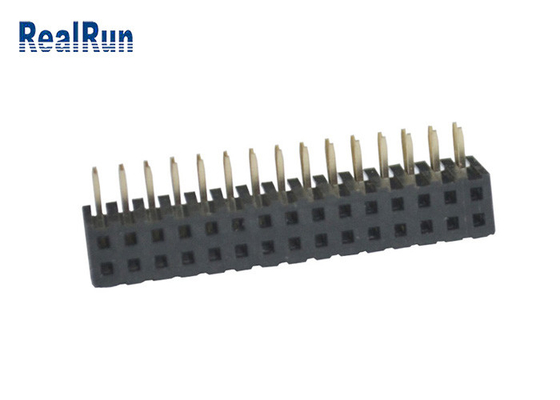

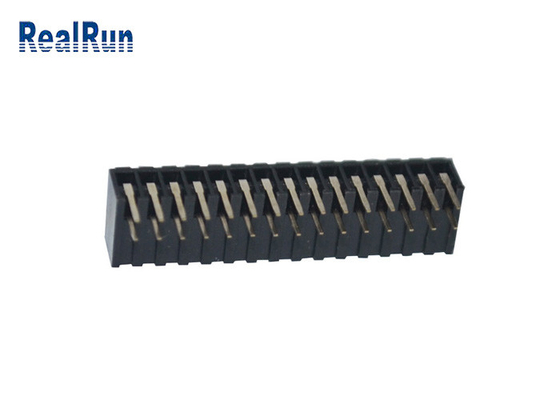

ISO9001 PA6T Right Angle Type Female Header 2 Row 30 Position H=7.2 Gold Pins
Specifications:
| Products Name | Female Header/PCB Connector |
| Pitch | 2.00mm(0.1'') |
| Current Rating | 2.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000 MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Contact Plating | Au or Sn Over Ni |
| Insulator Material | PA6T+30 GF(UL94-V0) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Number of Row | Dual |
| Plastic Height | 7.2mm |
| Contact Finish | Gold Flash |
| Pins available | 4 Pins to 40 Pins |
| Color | Black |
| Packaging | Tube |
What is the Female Header Connector?
It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
Product Application
It widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Product features
The use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
How to Packing:
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing
4. Reel Packing with Cap, suitable for automatic machine producing
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
FAQ
Q: Whether supply custom?
A: Yes,we are a professional manufacturer of connector and wire harness and custom for clients.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: How to buy your products?
A: You can directly contact our sales team by skype email or make a call,we will respond within 12 hours.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
Q: What are your products applied to?
A: Automotive use, Industial use, Home applicance, Electronic etc.
