| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*3.55-1*nT 7T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Color: | Black |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Plastic Height: | 3.55mm |
| Number Of Pins: | 7PIN | Number Of Rows: | Single |
| High Light: | PA6T Single Row PCB Connector,Gold Plating Single Row PCB Connector,Black LCP SMD Header Connector |
||

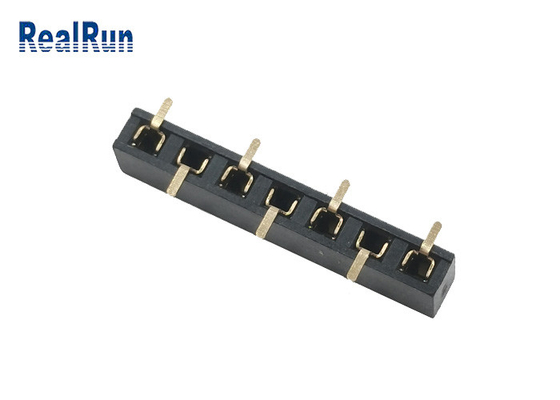

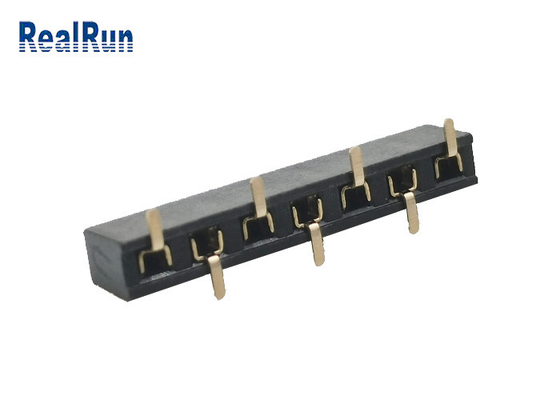

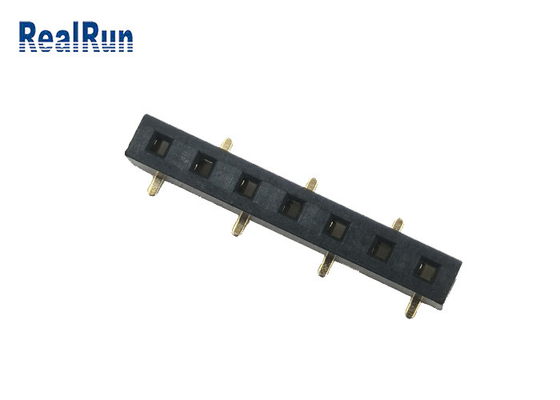

SMT Female Header 2.54 Mm Double Row SMT Surface Mount Pin Header
| Product Name | female header connector |
| Pitch | 0.8mm,1.0mm,1.27mm,2.0mm,2.54mm,3.96mm,5.08mm |
| Detail | DIP,SMD,90 degree,180 degree |
| Housing | PA6T/PA9T/LCP+30%G.F UL94V-0 |
| Insulator Height for Choice | 3.50mm ,3.60mm ,4.50mm ,5.00mm ,5.70mm ,5.90mm ,6.00mm ,6.80mm ,6.90mm ,7.10mm ,7.20mm ,7.50mm ,8.40mm ,8.50mm ,8.60mm ,11.0mm |
| Pin | 02~80P |
| Contact Material | Phosphor Brass,Brass |
| Insulator Material | PBT,PA6T,PA9T,LCP,PA66,PA46,PPS,PA115(Halogen Free) |
| Rating Current | 2.00AMP |
| Contact Resistance | 30mΩ Max |
| Withstanding Voltage | AC 1000V/Minute |
| Insulating Resistance | 1000MΩ Min |
| Temperture Range | -40°C to +105°C |
| Plating | Gold(Au) or Tin(Sn) plated over Nickel(Ni) |
| Packaging | PE Bag,Tube,Tape&Reel,Tube+CAP,Tray,Plastic Box |
Description
1. Female header connector is a kind of connector.
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
3. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
Feel free to contact us send you the drawing of you need:
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
Q: If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q: Which payment can be accepted:
1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
