Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH1.0*1.5-2*33T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 1.0Mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PA6T+30%Glass Fiber, (UL94V-0) |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Operation Temperature: | -40℃ To +105℃ | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 20mΩ Max | Processing Temperature: | 260℃ For 10 Seconds |
| Withstanding Voltage: | 500V AC/minute | Current Rating: | 1A |
| High Light: | SMT Male Pin Header Connector,SMT PA6T Pin Header Connector,Gold Flash 1.0Mm Pin Header |
||

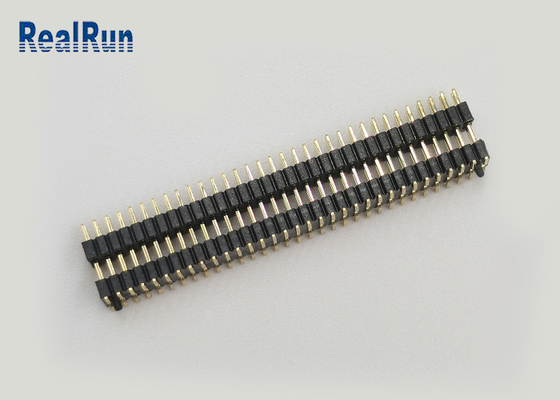

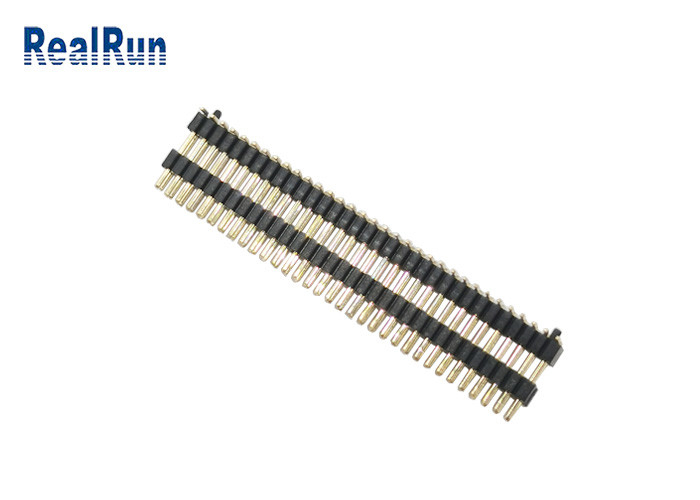

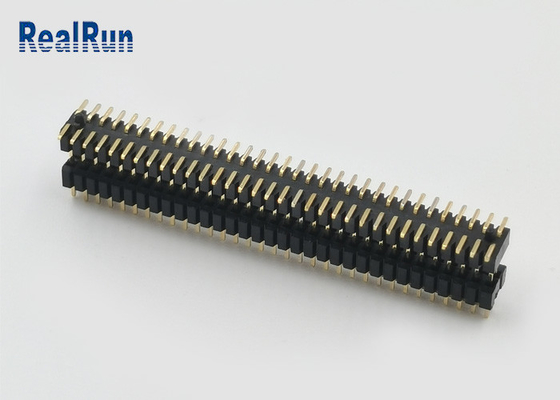

PA6T Gold Flash 1.0mm Pin Header Connector SMT Male 2X33p With Post Dual Layer Plastic
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
PA6T Gold Flash 1.0Mm Pin Header Smt Male 2*33p With Post Dual Layer Plastic
Product features: Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
|
Name |
Pin Header Connector |
|
Pitch |
1.0mm |
|
Type |
SMT type |
|
Insulator Color |
Black |
|
Insulator |
PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 20mΩ Max |
| Withstanding Voltage | 500V AC/minute |
| Current Rating | 1A |
|
Contact Material |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min |
|
Contact Plated |
Gold/Tin over Nickel |
| Processing Temperature | 260℃ for 10 seconds |
|
Insulator material |
PA6T PBT LCP |
|
Packing |
Reel&tape packing |
| OEM/ODM | Accepted |
|
Mounting Type |
SMT Type |
Please feel free to contact us and we will send you the drawings of you need:
Classification of pin header
According to pitch: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic: single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
What should I do if I encounter quality problems?
1. This kind of situation will not happen basically. Before shipment, we will carry out multi-level check to confirm that there is no product quality problem before packaging and delivery.
2. In case of such a thing happening, we will negotiate with you about the handling plan and assure you that it will not happen again in the future.
3. If you encounter quality problems in the receiving process, RealRun will take full responsibility for the cost of return and replacement caused by product quality problems.
About the mode of transportation?
1. Land Transportation.
2. ocean transportation.
3. air transportation.
About packaging?
Reel/tray/tube/inner box+outer carton packing or the packaging method you need.
