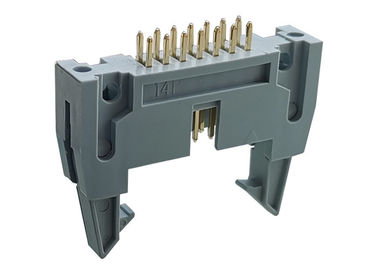

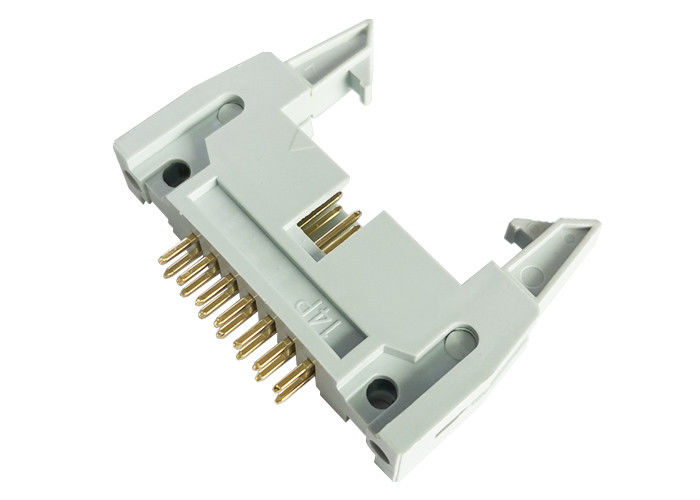

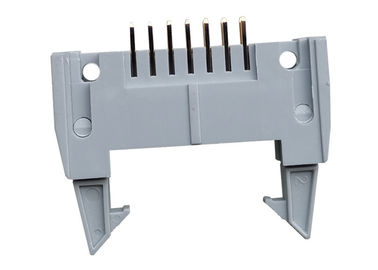

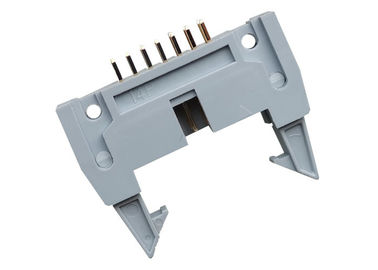

14 Pin Shrouded Header Connector Gold Flash PBT Material Insulation Resistance
| Name | Shrouded Header Connector |
| Pitch | 2.54mm |
| Type | DIP type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Description
1. Ejector header connector is one of many connector types.
2. It is not only a European type connector, but also a variety of connector classified according to the actual use. Because its shape is similar to horns, it is called ejector header connector. Ejector header connector is a very simple internal wiring equipment.
How to use Shrouded header connector
Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q. which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Connector manufacturers, professional in producing connector for more than 10 years.
We are specialized in electronic connectors, electronic wire harnesses and hardware development,
if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
