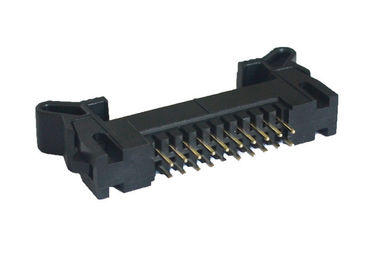

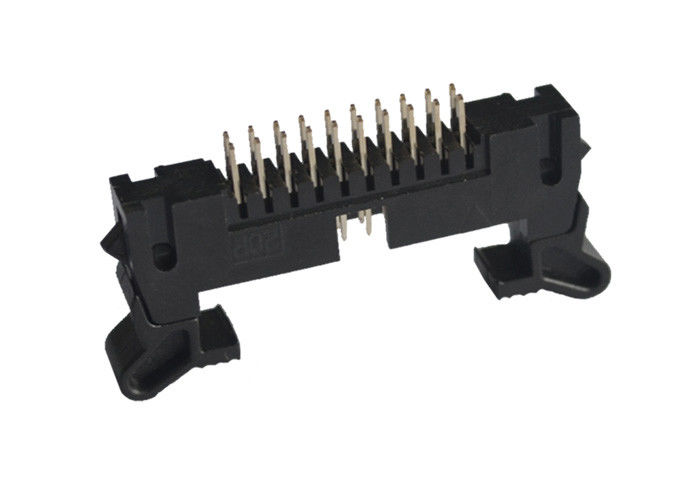

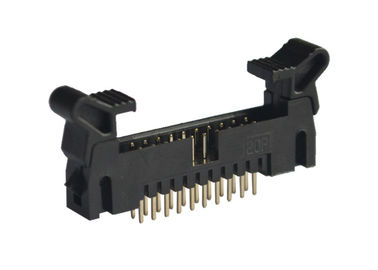

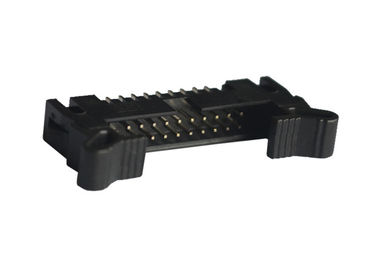

EH Series Shrouded Header Connector 2.0mm Plating Gold For PCB board
Description
1. Ejector header connector is one of many connector types.
2. It is not only a European type connector, but also a variety of connector classified according to the actual use. Because its shape is similar to horns, it is called ejector header connector. Ejector header connector is a very simple internal wiring equipment.
| Name | Shrouded Header Connector |
| Pitch | 2.0mm |
| Type | DIP type |
| Insulator Color | Black |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 2A |
| Contact Resistance(max) | 30m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
How to use Shrouded header connector?
Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.
Category
1. According to the spacing: 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. No. of pins: 2~80 pins.
3. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT).
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
