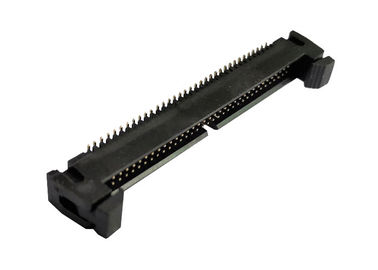

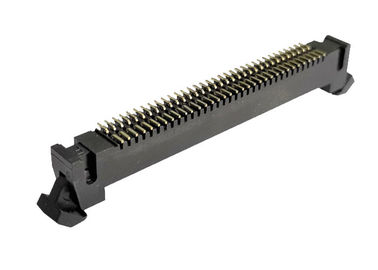

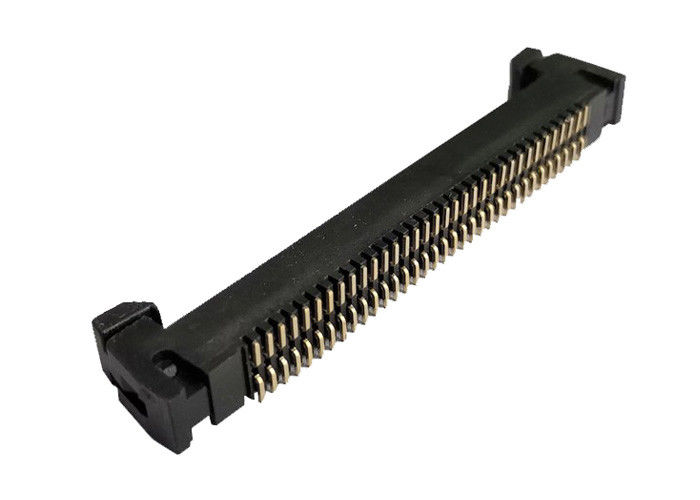

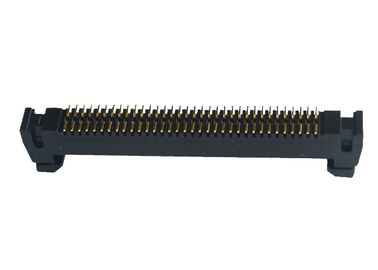

1.27 Mm Pin Header 68 Pin SMT Type Trough Hole Right Angle Header Connector

1.27 Mm Pin Header 68 Pin SMT Type Trough Hole Right Angle Header Connector

Description:
1. Ejector header connector is one of many connector types.
2. It is not only a European type connector, but also a variety of connector classified according to the actual use. Because its shape is similar to horns, it is called ejector header connector. Ejector header connector is a very simple internal wiring equipment.


How to use Shrouded header connector?
Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.



Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-5 days to reach your hands.

Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.

Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.


Why choose RealRun?

1. Professional R & D, production, sales as one of the industrial companies;

2. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities;

3. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification;

4. Main board to board, board to line, line to line, I / O, IC base, storage connector;

5. The products are widely used in mobile devices, LED displays, computer peripherals, automobile peripherals, power peripherals, medical equipment, household appliances and monitoring equipment, TV and TV set-top boxes, instruments and meters, network peripherals and other equipment products.
