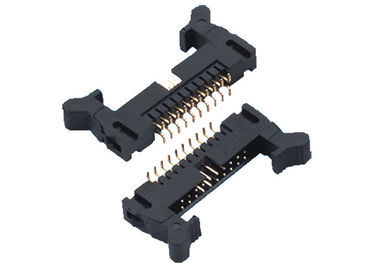

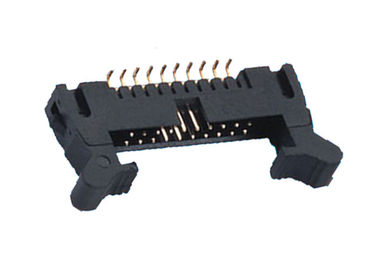

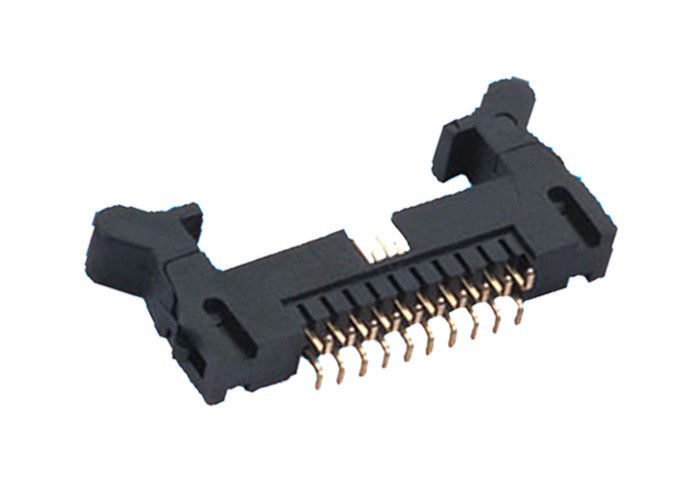

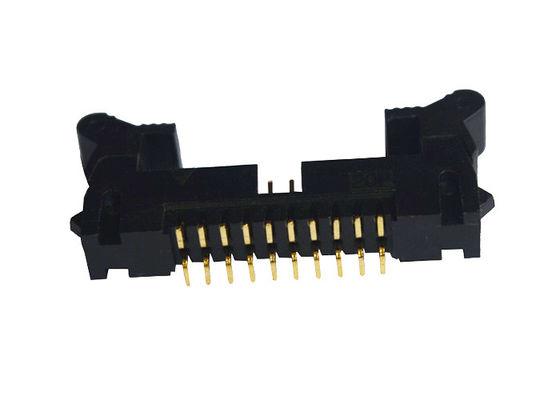

2.0mm Shrouded Header Connector 20 Pin Female Male Connector With SMT Type
| Name | Shrouded Header Connector |
| Pitch | 2.0mm |
| Type | SMT type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 1A |
| Contact Resistance(max) | 30m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Product Name: Shrouded Header Connector
1. features: high temperature resistance, high voltage electrical conductivity
2. material: PA9T/LCP/PBT plating surface treatment: gold or tin
3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current
How to use Shrouded header connector
Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.
Category
1. According to the spacing: 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. No. of pins: 2~80 pins.
3. Installation mode: straight, right angle, SMT.
4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
