Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | EH2.54-nP 10P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Application: | PCB Board | Insulator Material: | PBT/PA6T |
|---|---|---|---|
| Contact Material: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 3A | Withstanding Voltage: | 500V AC/minute |
| Contact Resistance: | 20mΩ Max | Processing Temperature: | 260±5℃ For 10 Seconds |
| High Light: | shrouded pin header,right angle pin header |
||

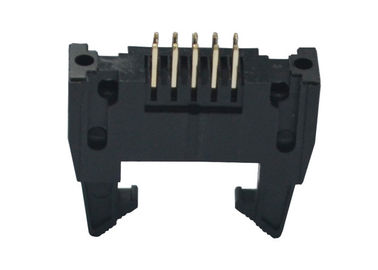

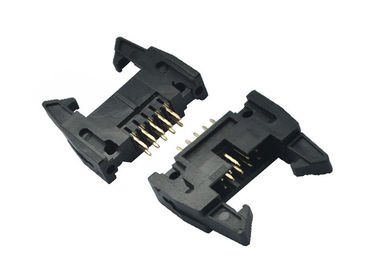

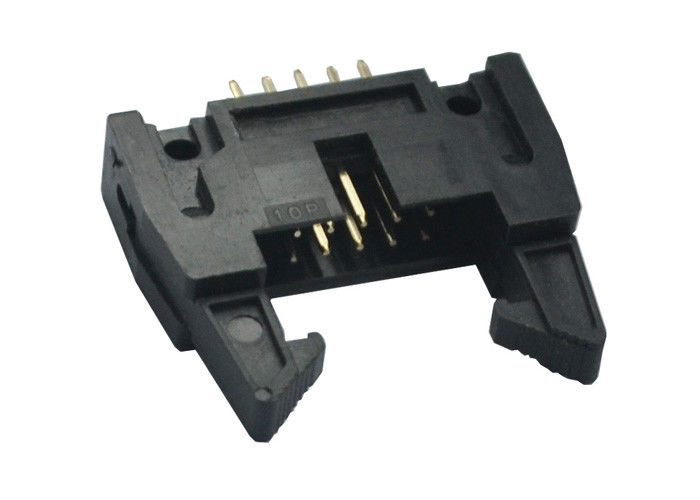

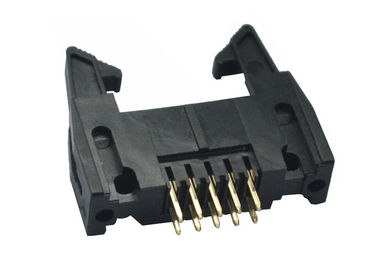

Fireproof 2.54mm Shrouded Header Connector 10 Pin Vertical Trough Hole
| 1. Current Rating | 0.75AMP |
| 2. Contact Resistance | 30mΩ Max |
| 3. Withstand Voltage | 500V AC/DC |
| 4. Insulation Resistance | 1000mΩ Min |
| 5. Operation Temperature | ﹣40℃ to +105℃ |
| 6. Contact Material | Brass |
| 7. Contact Plating | AU Sn over Ni |
| 8. Insulator Material | LCP+33％GF UL94V-0 |
Product Name: Shrouded Header Connector
1. features: high temperature resistance, high voltage electrical conductivity.
2. material: PA9T/LCP/PBT plating surface treatment: gold or tin.
3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current.
Why Choose RealRun?
Automatic Production
More than 80% RealRun products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.
Delivery on time
Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.
Make Value
Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.
Instant Response
Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.
FAQ
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected.
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of application
Shrouded Header Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
