Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | EH2.54-nW 14W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Type: | Right Angle Type | Contact Plating: | Gold/Tin Over Nickel |
|---|---|---|---|
| Current Rating: | 3A | Withstanding Voltage: | 500V AC/minute |
| Insulator Material: | PA6T/PA9T/LCP | Processing Temperature: | 260±5℃ For 10 Seconds |
| Highlight: | shrouded pin header,right angle pin header |
||

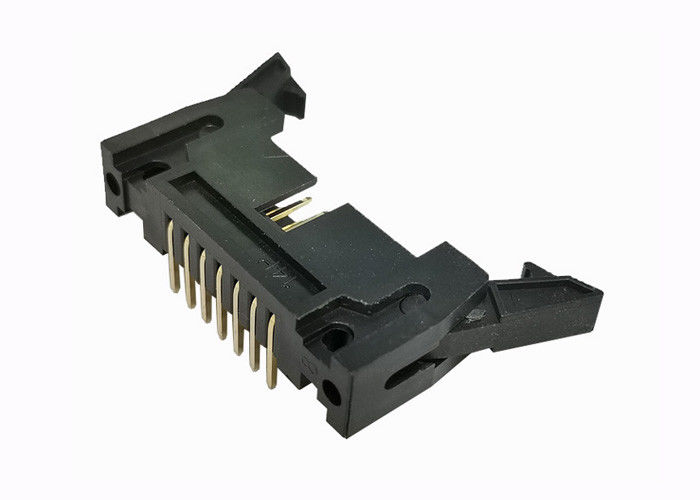

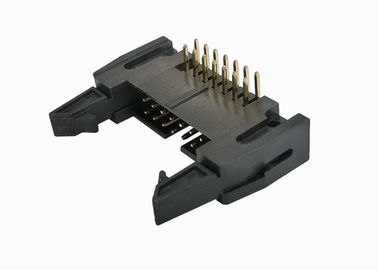

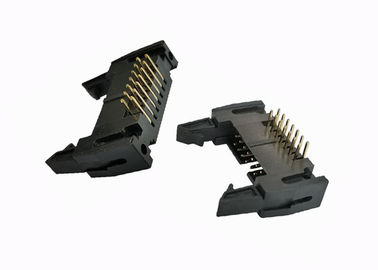

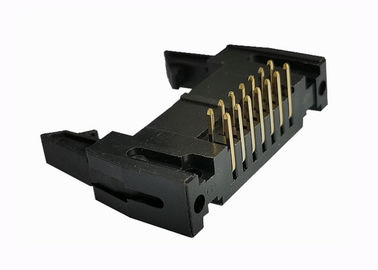

2.54mm Right Angle Pin Header 14 Pin Shrouded Connector Trough Hole 500V
| 1. Current Rating | 3AMP |
| 2. Contact Resistance | 30mΩ Max |
| 3. Withstand Voltage | 500V AC/DC |
| 4. Insulation Resistance | 1000mΩ Min |
| 5. Operation Temperature | ﹣40℃ to +105℃ |
| 6. Contact Material | Brass |
| 7. Contact Plating | AU Sn over Ni |
| 8. Insulator Material | LCP+33％GF UL94V-0 |
Product Name: Shrouded Header Connector
1. features: high temperature resistance, high voltage electrical conductivity.
2. material: PA9T/LCP/PBT plating surface treatment: gold or tin.
3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current.
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
FAQ:
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected.
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of application:
Shrouded Header Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
