Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC2.54-nP 10P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Withstanding Voltage: | 500AC | Insulator Flammability: | UL 94V-0 |
|---|---|---|---|
| Type: | IDC Connector | Insulator Material: | PA6T/PA9T/LCP |
| Contact Resistance(max): | 30m Ohm | Pin Available: | 2 Pins To 80 Pins |
| High Light: | idc socket connector,idc wire to board connector |
||

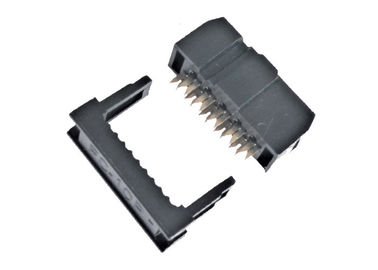

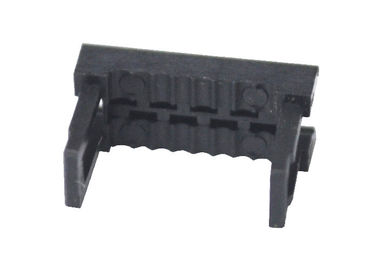

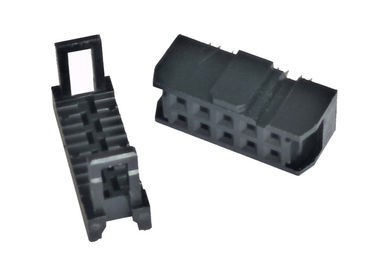

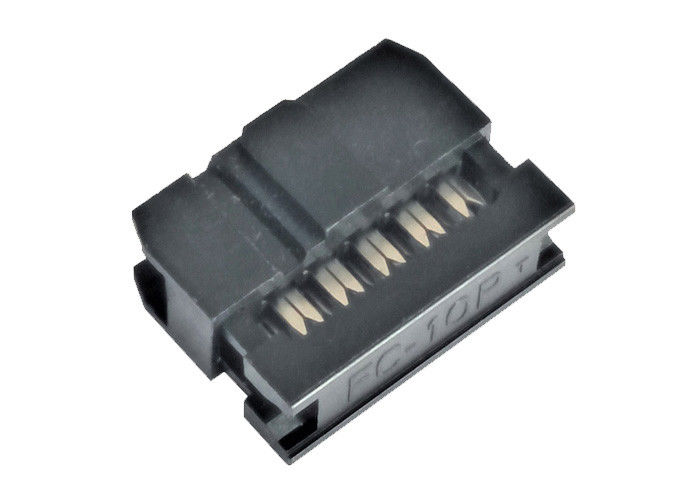

Black IDC Connector 2.54mm Female Header Computer Ribbon Cable Connectors
Current Rating | 3.0AMP |
Contact Resistance | 20mΩ Max |
Withstand Voltage | 1000V AC/DC |
Insulation Resistance | 1000mΩ Min |
Operation Temperature | ﹣40℃ to +105℃ |
Contact Material | phosphor Bronze |
Contact Plating | Au over Ni |
Insulator Material | PBT+30%GF UL94V-0 |
Product Name: IDC connector | ||
1. Product features: contact system has been used to the level of automation test impact, vibration, and temperature cycling also proved their reliability and ruggedness. High temperature insulator up to 260 degrees Celsius reflow soldering process | ||
2. Insulating material: nylon 46:UL94V0 contact materials: phosphor bronzeTin plating: nickel PBT | ||
3. Scope of application: to be blocked in the circuit between the circuit or isolated bridge of communication, so that the current flow of the circuit, and achieve the intended function. 1 Introduction to PCB power supply and signal 2 discrete wire assembly is connected directly to the PCB |
OEM/ODM Capability
Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.
OEM services encompass buyers logo or label, designs services plus a whole after sales support package.
Customer Satisfaction
Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Payment Terms
There are many payment methods available such as D/A, D/P, T/T and Paypal.
FAQ:
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 3-7 days according to different products.
Q: What’s your payment term?
A: We accept T/T and Paypal.
Q: Why choose our company?
A: 1. Professional manufacturer since 2005, provide various kinds of connectors and cable assembled with connectors.
2. No MOQ demand.
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.
