| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC2.54-nP 50P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Withstanding Voltage: | 500AC | Insulator Flammability: | UL 94V-0 |
|---|---|---|---|
| OEM/ODM: | Accepted | Application:: | FPC |
| Operating Temperature: | -40~105℃ | ||
| High Light: | idc socket connector,insulation displacement connector |
||

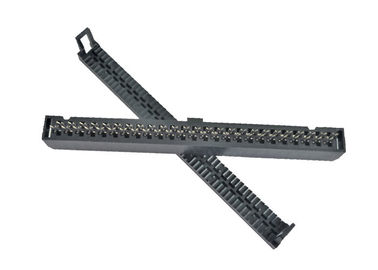

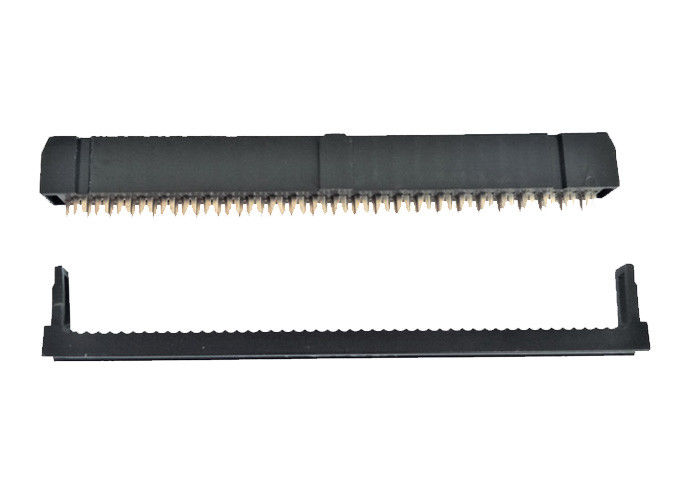

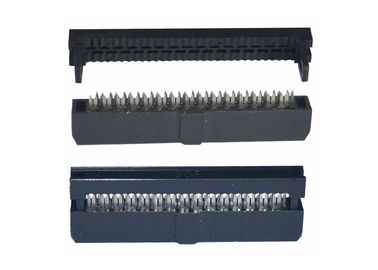

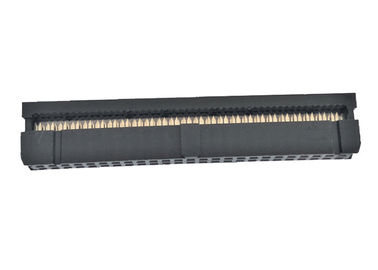

Two Row Female IDC Connector 50 Pin , Automotive Electrical Connectors
| Name | IDC Connector |
| Pitch | 2.54mm |
| Type | Press Cable Type |
| Insulator Color | Red |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
What's the IDC Connector
IDC Connector called insulation-displacement contact is is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the conductors of insulation before connecting. When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.
Scope of Production
IDC Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
Shipping
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Product Type & condition
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Why choose RealRun?
1. Have a strong research and development ability for a new product.
2. Equipment and manufacturing ability for would.
3. Competitive price , and in time delivery well-selling in both domestic and foreign markets.
4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
5. Reasonable prices, very competitive and reliable.
6. Excellent sales team and tech team ready to serve you.
7. Fast delivery.
8. OEM services with agreed quantity by both parties.
9. Specializes in the development , design , production and sale of communication network connectors .
10. We hope to make long term business cooperation with all our customers.
