Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC2.0-nP-L 20P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Insulator Material: | PA6T/PA9T/LCP |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| Highlight: | idc flat ribbon cable,ribbon cable assemblies |
||

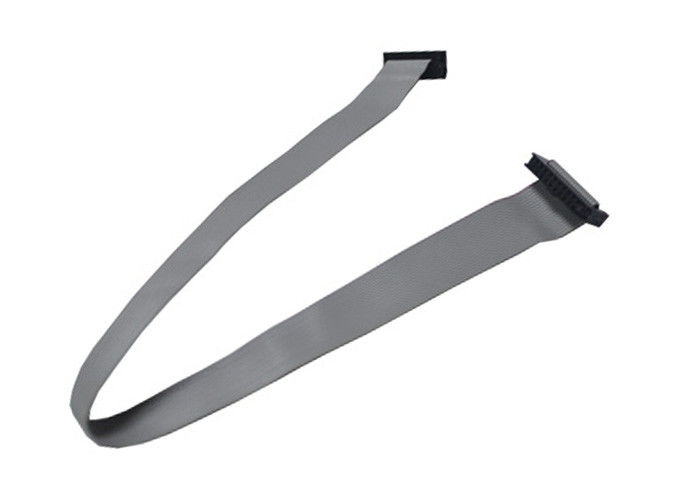

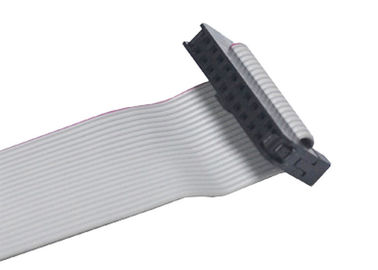

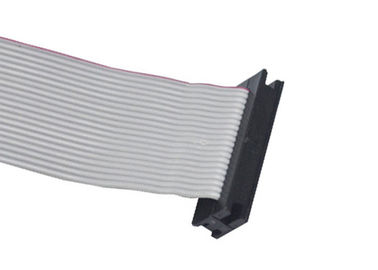

Dual IDC Cable Assembly 20 Pin IDC Socket Shielded 2mm Pitch Ribbon Cable
Specification:
| Connector | IDC Flat Cable |
| Pins available | 06Pins to 40Pins |
| Number of Row | Dual |
| Terminal Finish | Gold over Nickel |
| Cable | UL2651 28AWG 1.27mm Pitch 16 Pins |
| Cable Pins available | 06Pins to 64Pins |
| Color | Gray |
| Length | Customization |
| Style | Wire to Board |
| Crimp Orientation | Same Orientation(First Pin is Red Line) |
| Crimp Tools | Semi-Automatic Machine |
| Test | 100% Open & Short Test |
| Certificate | UL Authentication |
| Equivalent Brand | TE Connectivity/AMP/FCI |
| Packaging | Single PE Bag |
| Shipping method | Fedex/DHL/UPS/TNT or Specify Forwarder |
What is the flat ribbon cable assembly
Ribbon Cable Assemblies,IDC, compliant with RoHs,could be customized,1.0mm,1.27mm,2.54mm pitch all available. They are often used for connections to PCBs and for links either within equipment or externally.Ribbon cables have the best ability both in compactness and manageability. We could also provide all kinds of types needed,such as standard grey, color-coded (rainbow) Ribbon in laminated or edge boded form and specials such as twisted pair (twist-n-flat), round jacketed (round-n-flat) and screened ribbon cables.More and more types of connectors with bigger ranges are available now,including standard IDC sockets, D-types, half-pitch D-types, Centronics, Half-pitch Centronics, plus PCB Dual Inline, card-edge and transition connectors.

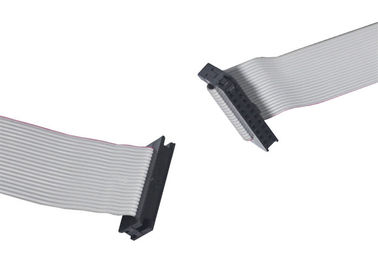

How to distinguish cable direction
1. Same direction
Both bump at the same way.
2. Opposite direction
Both bump at the oppsite way.
3. Up and dowm direction
Both bump at the different way. For the details, you can check as below image description.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q. Which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
