| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC2.54-nP-L 16P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Termination: | Solder | Insulator Material: | PA6T/PA9T/LCP |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| Highlight: | idc flat ribbon cable,idc ribbon cable assembly |
||

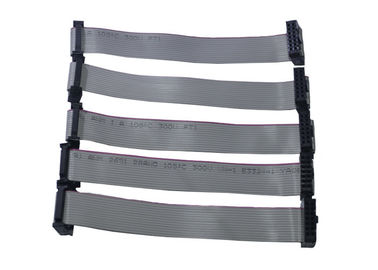

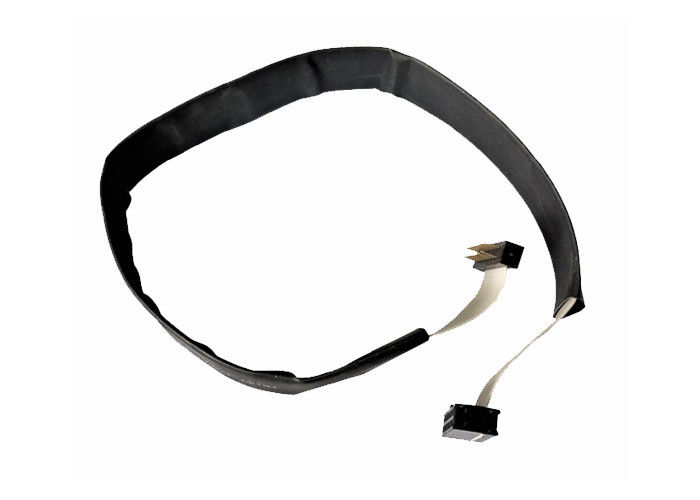

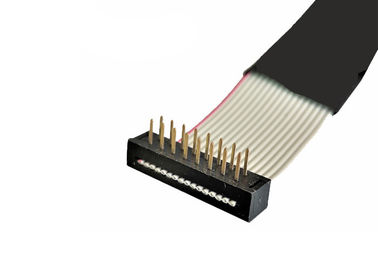

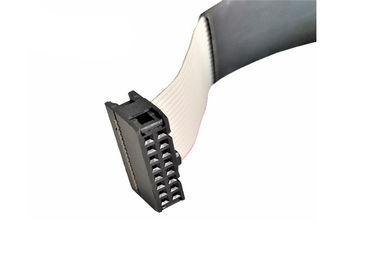

Gold Over Nickel IDC Flat Cable Assembly , Dual Row Computer Ribbon Cable
What is the flat ribbon cable assembly
Ribbon Cable Assemblies,IDC, compliant with RoHs,could be customized,1.0mm,1.27mm,2.54mm pitch all available. They are often used for connections to PCBs and for links either within equipment or externally.Ribbon cables have the best ability both in compactness and manageability. We could also provide all kinds of types needed,such as standard grey, color-coded (rainbow) Ribbon in laminated or edge boded form and specials such as twisted pair (twist-n-flat), round jacketed (round-n-flat) and screened ribbon cables.More and more types of connectors with bigger ranges are available now,including standard IDC sockets, D-types, half-pitch D-types, Centronics, Half-pitch Centronics, plus PCB Dual Inline, card-edge and transition connectors.
| Connector | IDC Flat Cable |
| Pins available | 06Pins to 40Pins |
| Number of Row | Dual |
| Terminal Finish | Gold over Nickel |
| Cable | UL2651 28AWG 1.27mm Pitch 16 Pins |
| Cable Pins available | 06Pins to 64Pins |
| Color | Gray |
| Length | Customization |
| Style | Wire to Board |
| Crimp Orientation | Same Orientation(First Pin is Red Line) |
| Crimp Tools | Semi-Automatic Machine |
| Test | 100% Open & Short Test |
| Certificate | UL Authentication |
| Equivalent Brand | TE Connectivity/AMP/FCI |
| Packaging | Single PE Bag |
| Shipping method | Fedex/DHL/UPS/TNT or Specify Forwarder |
How to distinguish cable direction
1. Same direction
Both bump at the same way.
2. Opposite direction
Both bump at the oppsite way.
3. Up and dowm direction
Both bump at the different way. For the details, you can check as below image description.
FAQ:
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected.
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of Application:
Flat ribbon cable assembly widely used in different industry such as automotive, medical equipment, outdoor led screen and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
