| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DB-nP 9P Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 5~8workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Processing Temperature: | 260±5℃ For 10 Seconds | Circuits: | 4~68P |
|---|---|---|---|
| Color: | Black | Insulation Resistance(min): | 1000M Ohm |
| Insulator Material: | PBT/PA6T | ||
| High Light: | d subminiature connector,circuit board pin connectors |
||

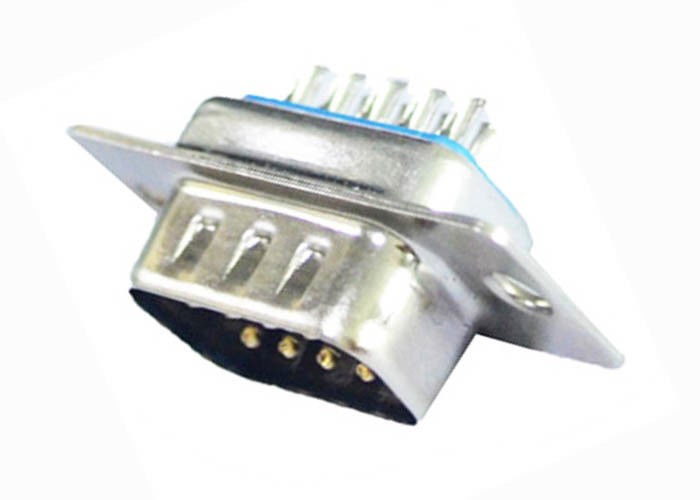

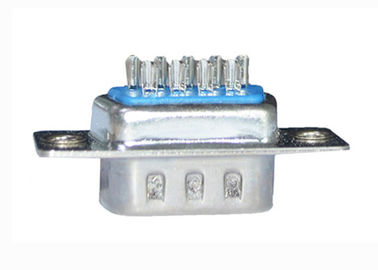

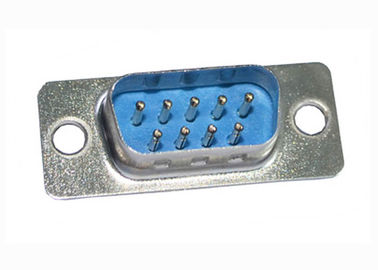

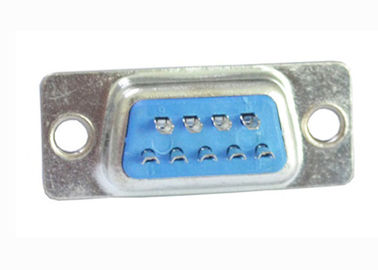

Blue DB 9 Pin D Type Connector Straight Type DP Socket For PCB Circuit Board
| Name | D SUB Connector |
| Pitch | 2.77mm |
| Type | DIP type |
| Insulator Color | Black |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Description
1. D-SUB is short for D-subminiature. The D-SUB connector uses a series of pins that slot into a socket, with the plug usually screwed into place to prevent it coming loose.
2. D-SUB can be divided into two rows, three rows of welding line series, male head series, with rivets, with a high degree of close reactivity and a variety of fixed ground accessories, is a universal D-SUB., so that socket and plug protection cover combined.
3. It is very good at shielding EMI. High-current D-SUB can complete high-density and high-current series and can be mixed with the signal at the same time. The maximum current is 50A. The coaxial D-SUB allows mixed contact in mixed use, including signals, Gaodianya and Fiber, this new type of connector, are improved by combining military products.
Product Application
1. There are a wide range of past and present uses for D-sub connectors. These include printer cables, computer game joysticks and external floppy disk drives. They are also used in some multi-channel audio recording systems.
2. It most common use of the D-sub connector is as a video connector. This is in a plug and socket known as DE15, meaning it is D-shaped, size E in ITT Cannon's system, and has 15 pins. These are arranged in three rows of five.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
