| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.0-nPBW 4PBW |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Name: | Connector Wafer | Contact Resistance(max): | 30m Ohm |
|---|---|---|---|
| Current Rating: | 3A | OEM/ODM: | Accepted |
| Insulation Resistance(min): | 1000M Ohm | Mounting Type: | Through Hole |
| High Light: | wire housing connector,wire board connector |
||

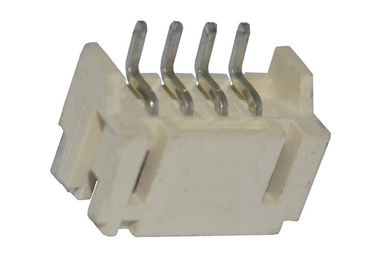

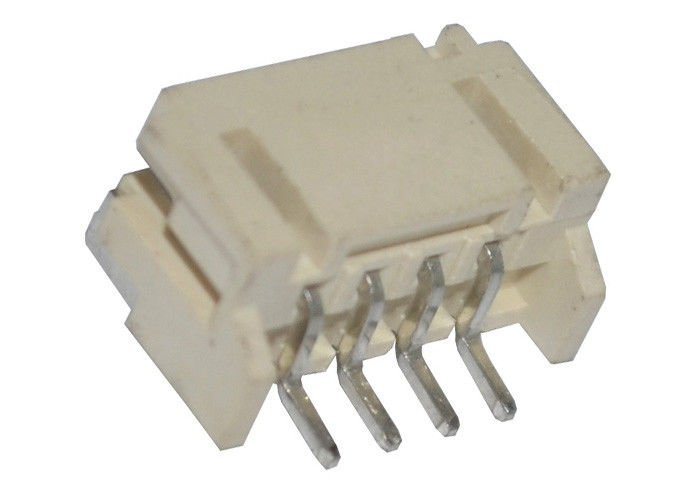

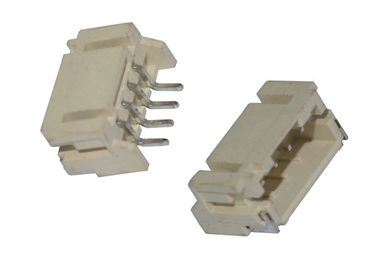

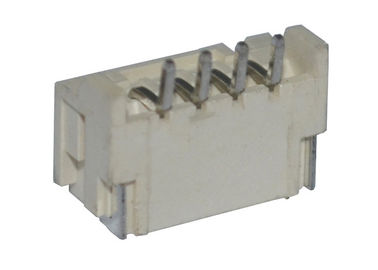

Horizontal Wafer Connector Housing PA66 2.0mm Pitch Through Hole Mounting
| Product Name: wafer connector | ||||||||
| features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection. | ||||||||
| product material: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. | ||||||||
| Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
| Current Rating | 2.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Products Name | Female Header Connector |
| Pitch | 2.00mm(0.079'') |
| Mounting Type | Through Hole |
| Contact Plating | Au over Ni |
| Insulator Material | PA6T+30%GF(UL94V-0) |
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
